DXC55VS HEAT EXCH. ASSY

Name: DXC55VS HEAT EXCH. ASSY
SKU: DXC55VS HEAT EXCH. ASSY
Availability: InStock

DXC55VS HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

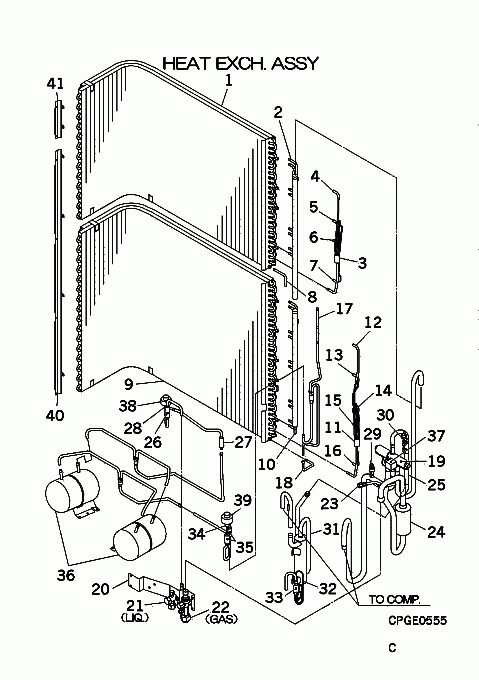

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PCA311A053B

HEAT EXCH(AIR)

Contact

[1-8] Contact

PCA301A123B

HEAT EXCH ASSY(AIR

Contact

Notes: UPPER

[2] Contact

PCA315D184

HEADER ASSY,GAS

Contact

[3] Contact

SSA315A237A

DISTRIBUTOR

Contact

Substitute: SSA315A252A

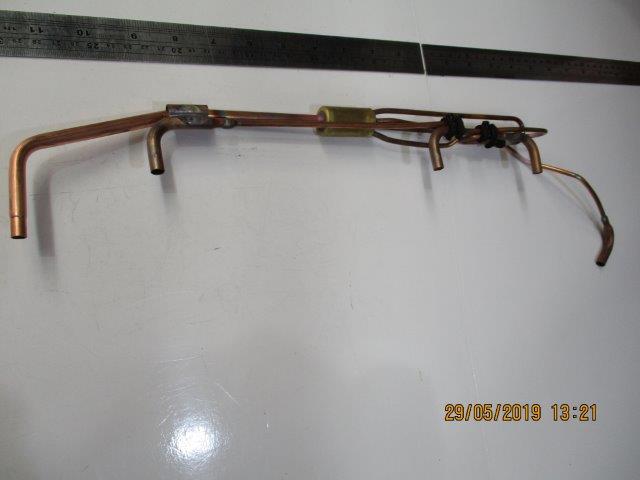

[3-7] In Stock

PCA315A090

DISTRIBUTOR

Show Image

[4] Contact

PCA315B870

CAPILLARY ASSY(1)

Contact

Notes: !D2.2XD4.0 L300

[5] Contact

PCA315B871

CAPILLARY ASSY(2)

Contact

Notes: !D2.2XD4.0 L300

[6] Contact

PCA315B872

CAPILLARY ASSY(3)

Contact

Notes: !D2.2XD4.0 L300

[7] Contact

PCA315B873

CAPILLARY ASSY(4)

Contact

Notes: !D2.6XD4.0 L300

[8] Contact

PCA321C654

PIPE

Contact

[9] Contact

PCA311A054B

HEAT EXCH(AIR)

Contact

[9-18] Contact

PCA301A124D

HEAT EXCH ASSY(AIR

Contact

Notes: LOWER

[10] Contact

PCA315D186

HEADEAR ASSY,GAS

Contact

[11] Contact

SSA315A237

DISTRIBUTOR

Contact

Substitute: SSA315A252

[11-16] Contact

PCA315A089D

DISTRIBUTOR ASSY

Contact

[12] Contact

PCA315B858

CAPILLARY ASSY(1)

Contact

Notes: !D2.8XD4.0 L300

[13] Contact

PCA315B859

CAPILLARY ASSY(2)

Contact

Notes: !D2.8XD4.0 L300

[14] Contact

PCA315B860

CAPILLARY ASSY(3)

Contact

Notes: !D2.8XD4.0 L300

[15] Contact

PCA315B861

CAPILLARY ASSY(4)

Contact

Notes: !D2.8XD4.0 L300

[16] Contact

PCA315B862

CAPILLARY ASSY(5)

Contact

Notes: !D2.8XD4.0 L300

[17] Contact

PCA321C747B

PIPE ASSY

Contact

[18] Contact

PCA321C996

PIPE

Contact

[19] In Stock

SSA382C096A

VALVE, S(4WAY)

Notes: 20S,20SL, Reversing Valve Body

[20] Contact

PCA116A234

BRACKET

Contact

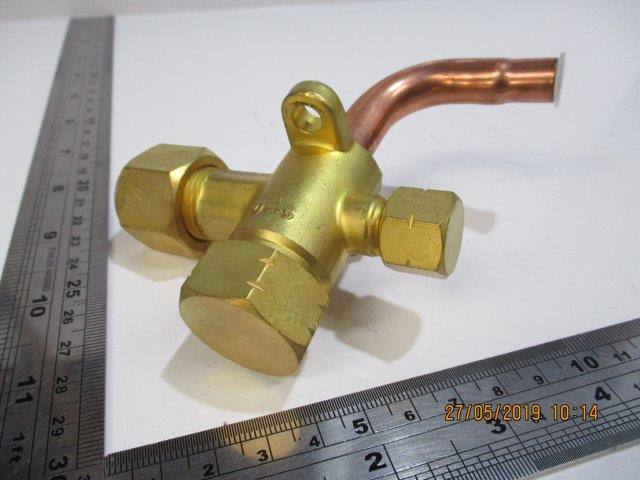

[21] In Stock

PCB381A077B

SERVICE VALVE

Notes: LIQ. Show Image

[22] In Stock

SSA381A886

VALVE,SERVICE(3/4")

Notes: GAS, GAS - SUCTION 3/4 INCH

[23] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[24] Contact

SSA325A001CL

PIPE,SHELL

Contact

[25] In Stock

SSA385A018A

VALVE CHECK

[26] In Stock

SSA357A059B

STRAINER

[27] In Stock

SSA357A005AA

STRAINER

Show Image

[28] In Stock

SSA387F044

EXP VALVE

Notes: EEVC or SM1, EEV Body Show Image

[29] In Stock

SSA551D022C

SENSOR LP

Notes: LOW PRESSURE TRANSDUCER Show Image

[30] In Stock

SSA532A083

SWITCH HP

Notes: 63H1, (HIGH PRESSURE SWITCH) - 63H1 Show Image

[31-33] In Stock

PCA304A259A

PIPING ASSY(OIL)

[32] Contact

PCA315B903

CAPILLARY

Contact

Notes: !D1.2XD2.5 L500

[32-33] Contact

PCA315B902

CAPILLARY ASSY(OIL

Contact

[33] In Stock

SSA357A059B

STRAINER

[34] In Stock

SSA387F044A

EXP VAL XP

Notes: EEV or SM2, EXPANSION VALVE BODY ONLY Show Image

[35] In Stock

SSA357A059T

STRAINER

[36] In Stock

SSA352B045B

RECEIVER

[37] In Stock

PCB382F107ZA

COIL ASSY, SOLENOID

Notes: FOR 20S, FOR 20S‚ - Solenoid for Reversing Valve

[38] In Stock

SSA382F212A

SOLENOID

Notes: FOR EEV(COOL) or SM1, COOLING/ LENGTH 78CM

[39] In Stock

SSA382F229J

SOLENOID XP

Notes: FOR EEVH or SM2 Show Image

[40] Contact

PCA141A101

PLATE,BAFFLE

Contact

[41] Contact

PCA141A102

PLATE,BAFFLE

Contact

SKU: DXC55VS HEAT EXCH. ASSY Category: Uncategorised
