DXC55VS FAN AND COMPRESSOR

Name: DXC55VS FAN AND COMPRESSOR
SKU: DXC55VS FAN AND COMPRESSOR
Availability: InStock

DXC55VS FAN AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

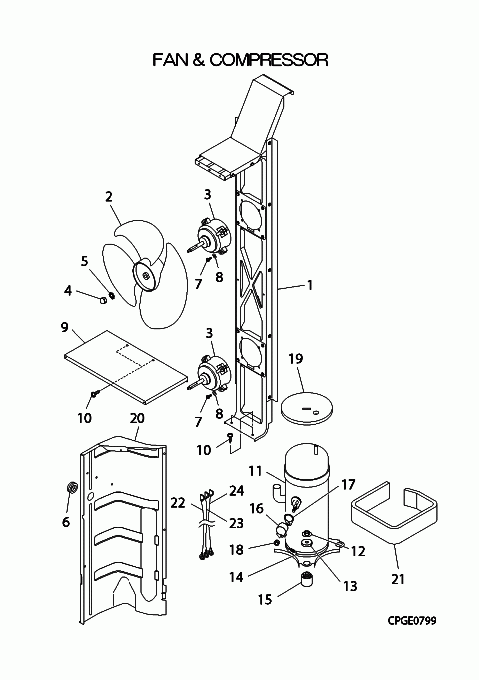

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PCA116A109M

BASE,MOTOR

Contact

[2] In Stock

SSA431B228

FAN, PROPELLER

Notes: CONDENSER FAN BLADE

[3] In Stock

PCA512A002D

MOTOR,DC

[4] In Stock

SSA914H014A

NUT

Notes: 1pc Show Image

[5] In Stock

SSA915F002D

WASHER

Notes: 1pc ONLY Show Image

[6] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[7] In Stock

SSA913C031A

SCREW TAP

Notes: 1pc ONLY Show Image

[8] In Stock

W200H06

WASHER

Notes: 1pc ONLY Show Image

[9] Contact

PCA141A096

PLATE,BAFFLE

Contact

[10] In Stock

SSA913D020

SCREW TAP

Notes: M5X10, 1pc ONLY Show Image

[11] In Stock

AGT201A727DN

COMPRESSOR ASSY

Notes: GTC5150ND70K, ***COMPRESSORS CANNOT BE RETURNED***

[12] In Stock

SSA914C033

NUT

Notes: 1pc

[13] In Stock

SSA941C289

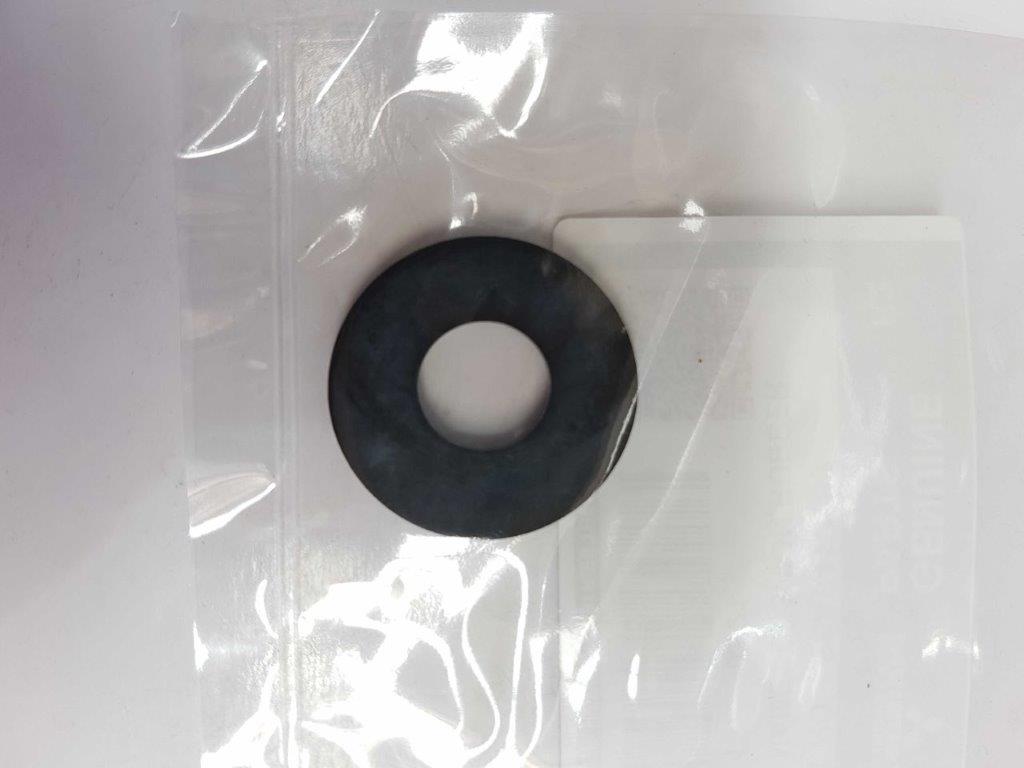

CUSHION RU

Notes: UPPER Show Image

[14] Contact

PCA541B021AN

HEATER ASSY(CRANK)

Contact

[15] In Stock

SSA941C285G

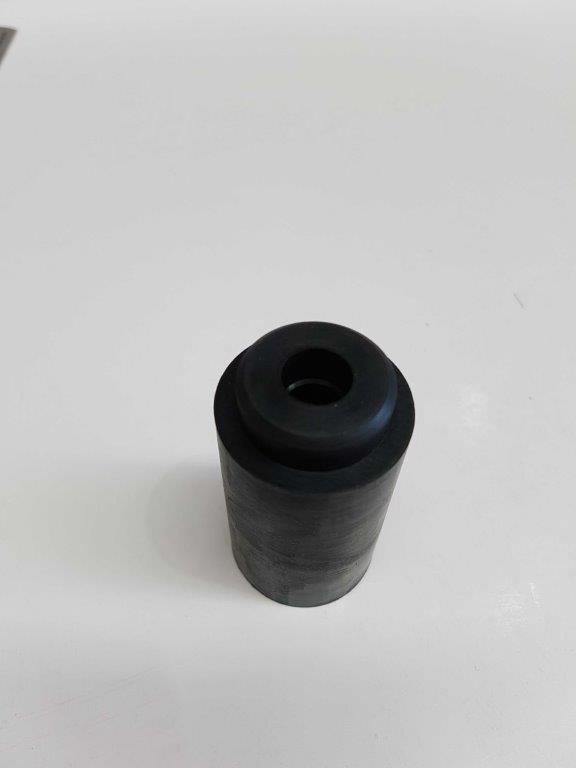

CUSHION RUB

Notes: LOWER, LENGTH 6CM Show Image

[16] In Stock

AGT947K100

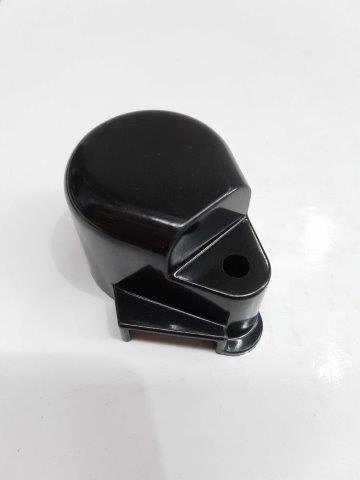

COVER TERMINAL

Show Image

[17] In Stock

AGT932C100

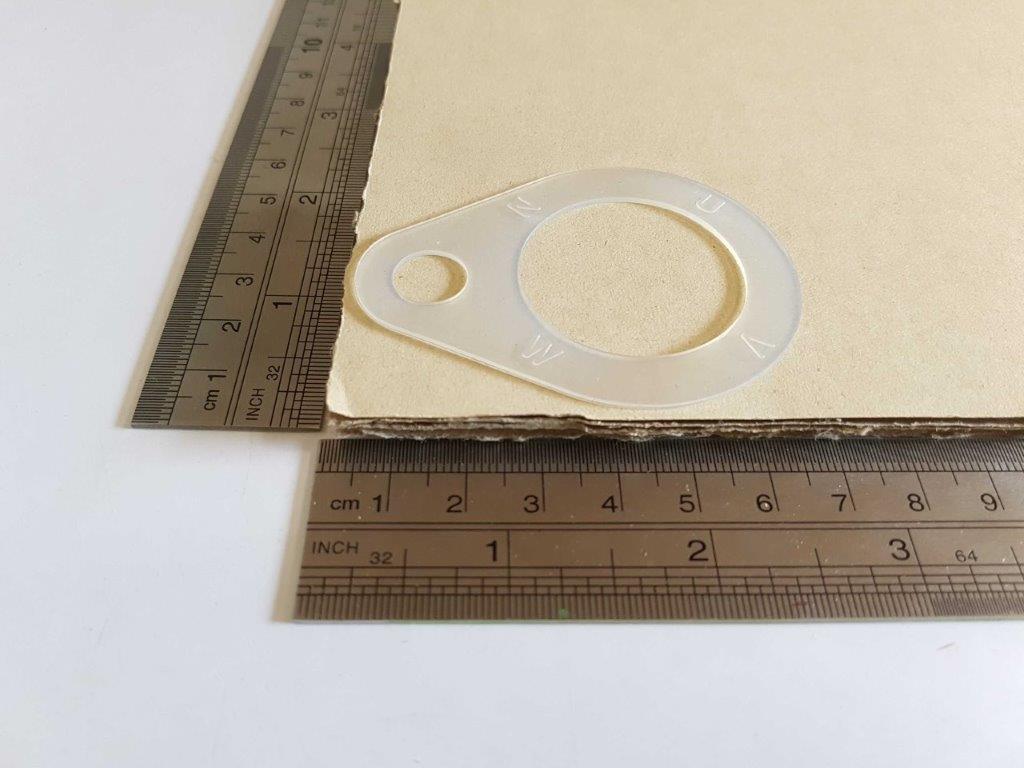

GASKET COVER

Show Image

[18] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[19] Contact

PCA151D034A

INSULATO CO

Contact

Notes: UPPER

[20] Contact

PCA141A080K

PLATE ASSY,BAFFLE

Contact

[21] Contact

PCB151D107A

INSULATION,COMP

Contact

[22] In Stock

PCA504A247DJ

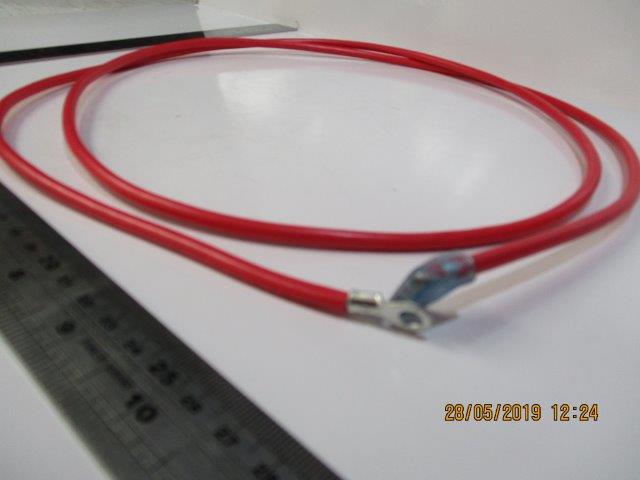

HARNESS ASSY

Notes: !U Show Image

[23] In Stock

PCA504A247DK

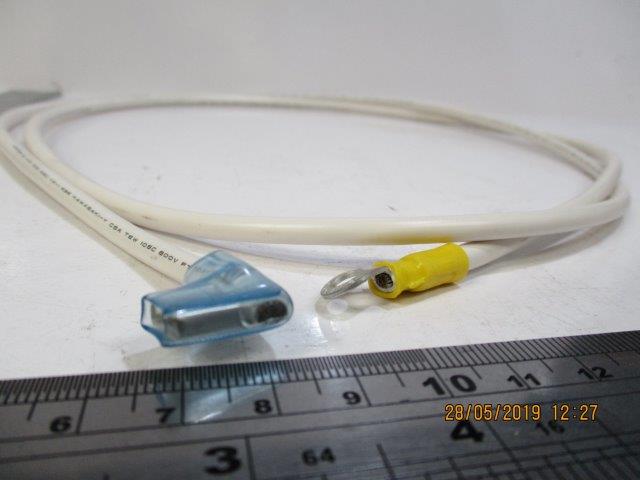

HARNESS ASSY

Notes: !V Show Image

[24] In Stock

PCA504A247DL

HARNESS ASSY

Notes: !W
