DXC55VS CONTROL AND PARTS SET

Name: DXC55VS CONTROL AND PARTS SET
SKU: DXC55VS CONTROL AND PARTS SET
Availability: InStock

DXC55VS CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

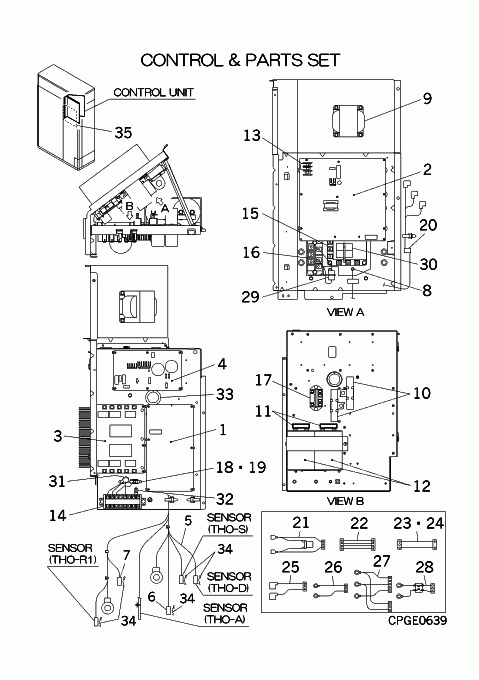

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A289YF

PWB ASSY (CONTROL)

Notes: PWB1, PWB ASSY(CONTROL)

[1-33] Contact

PCA501A134F

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

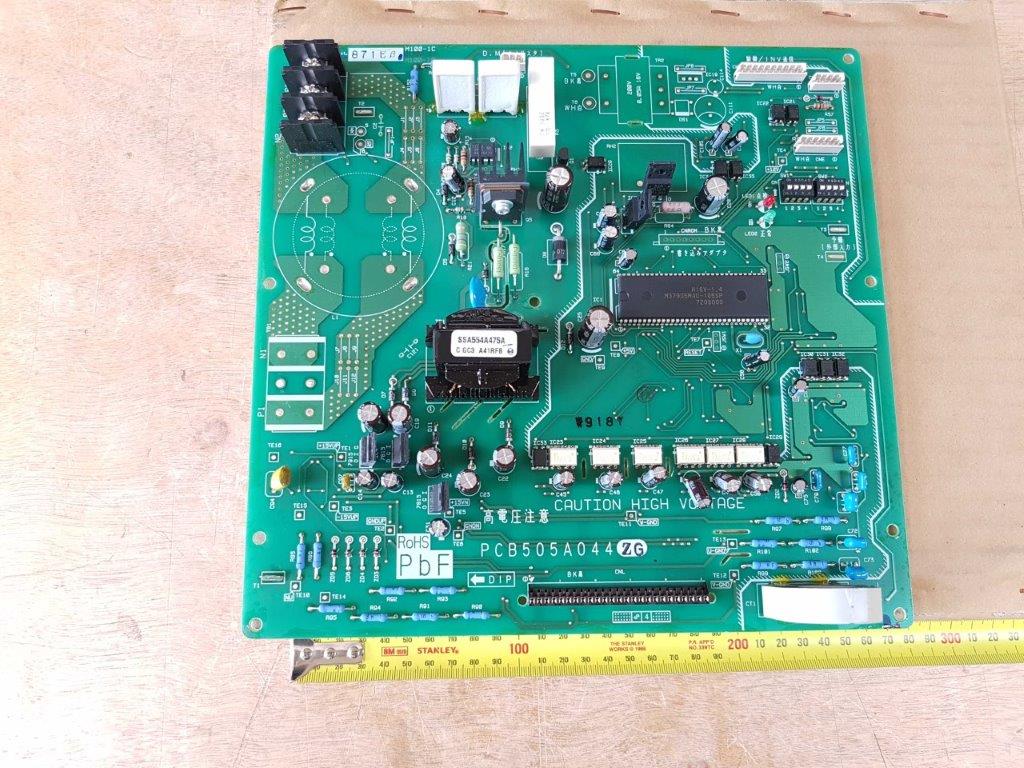

[2] In Stock

PCB505A044ZG

PWB ASSY(INV)

Notes: PWB2 INVERTER, ****NEED HEAT PASTE SSA971F044/ LENGTH 40CM Show Image

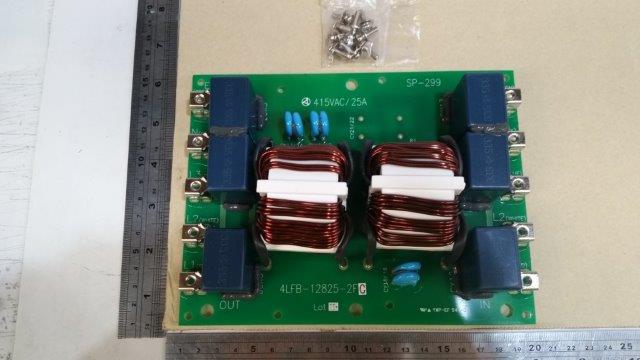

[3] In Stock

PCB505A035H

PWB ASSY(N.F)

Notes: PWB3, PWB3‚ - NOISE FILTER Show Image

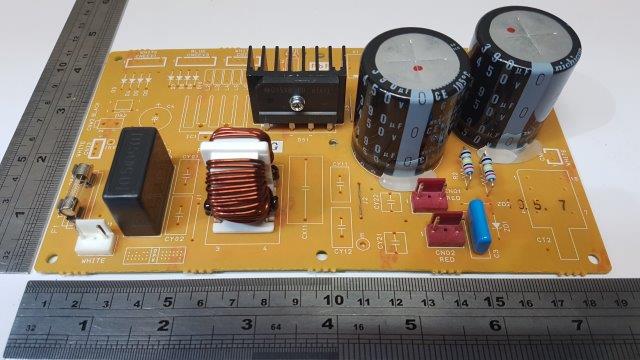

[4] Out of Stock

PCB505A041ZG

PWB ASSY

Substitute: OUT OF PRODUCTION Notes: PWB4, OUT OF PRODUCTION - 2 CAPACITORS ON THE BOARD Show Image

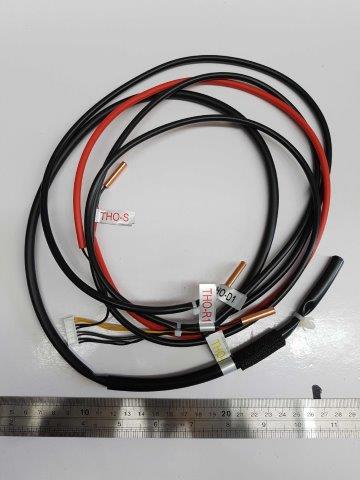

[5] In Stock

PSY551A004H

SENSOR ASSY

Notes: THO-A,S,D,R1, LENGTH 125CM Show Image

[6] In Stock

PSA551A014AA

SENSOR

Notes: THO-H, THO-H / LENGTH 133CM (compressor dome) Show Image

[7] In Stock

PSA551A013J

SENSOR

Notes: THO-R2 Show Image

[8] In Stock

SSA551A192K

SENSOR

Notes: THO-TR-IPM, THO-TIP or THO-TR or THO-IPM - SENSOR NEAR INVERTER BOARD Show Image

[9] Contact

PCB554B013A

REACTOR ASSY

Contact

Notes: L1

[10] In Stock

SSA553A379

RESISTOR

Notes: R1-1,2,R2-1,2, 15O (Ohm) Show Image

[11] Out of Stock

SSA553A380

RESISTOR

Notes: R1-3,4,R2-3,4, 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[12] In Stock

SSA552F427AJ

CAPACITOR

Notes: C1,2, C1 400V 3900MF

[13] Contact

SSA562K005

RLOCK TERMI

Contact

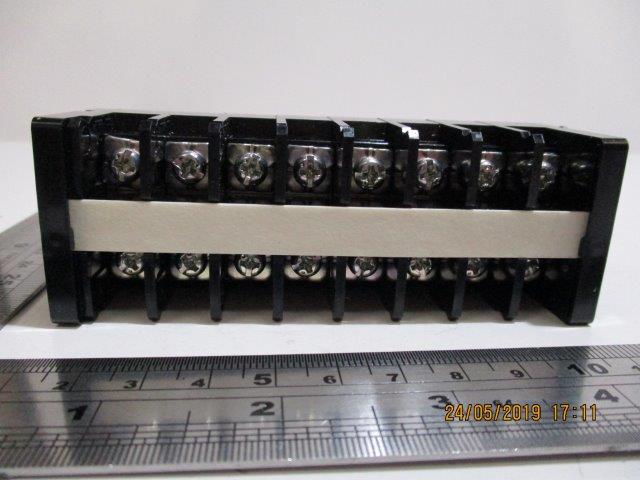

[14] In Stock

SSA561B693F

TERMINAL

Notes: TB Show Image

[15] In Stock

PCB008A120A

TRANSISTOR

Notes: IPM/TM, IPM (Intelligent Power Module) / POWER TRANSISTOR

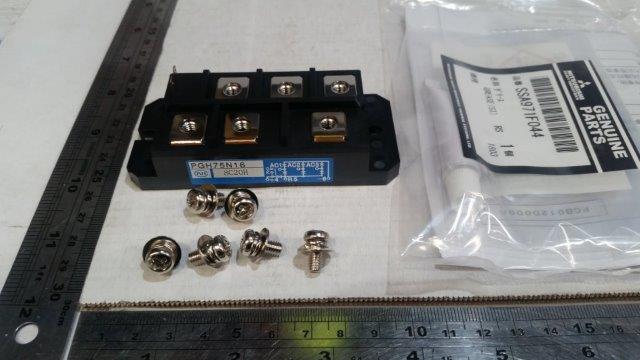

[16] In Stock

PCB008A121A

DIODE STACK

Notes: DM, aka DIODE MODULE Show Image

[17] In Stock

SSA521A715A

RELAY

Notes: 52X1-1,1-2,2-1,2-2, 52X1,52X2

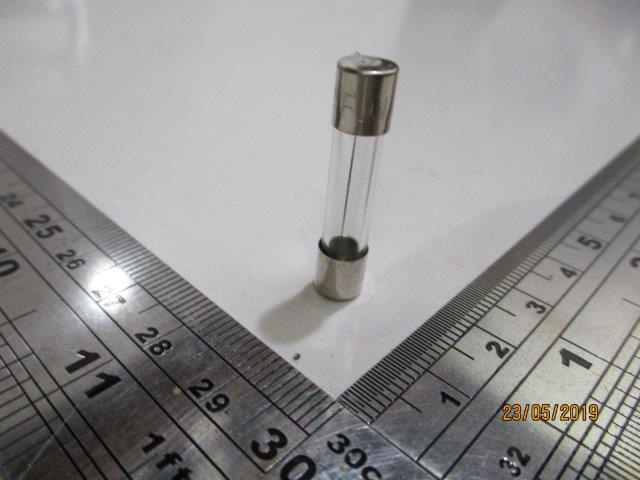

[18] In Stock

SSA564A135K

FUSE

Notes: F 10A Show Image

[19] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[20] In Stock

SSA552D081

FILTER,NOISE

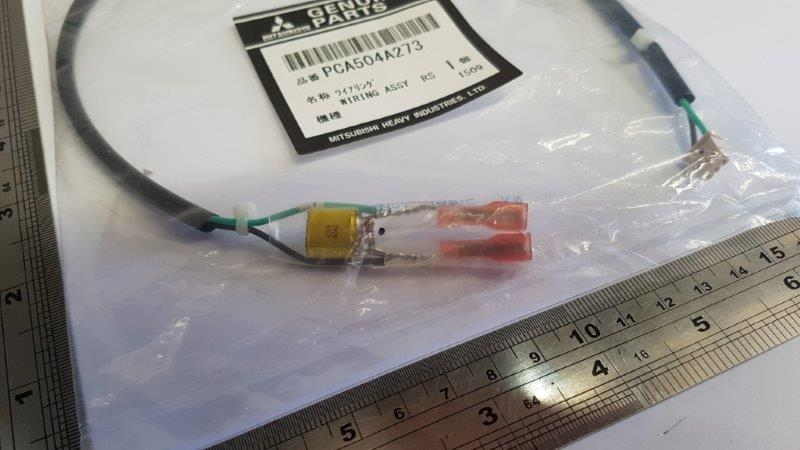

[21] Out of Stock

PCA504A273

WIRING ASSY

Substitute: OUT OF PRODUCTION Notes: DM1 G,DM1 K-PWB2-1 CNR, OUT OF PRODUCTION. DM1 G,DM1 K- PWB2-1 CNR Show Image

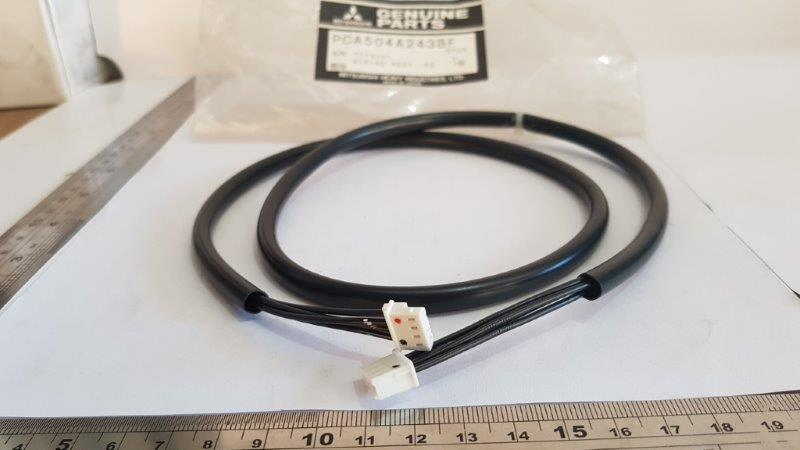

[22] In Stock

PCA504A243BF

HARNESS ASSY

Notes: PWB1 CNI1- PWB2 CNI3 Show Image

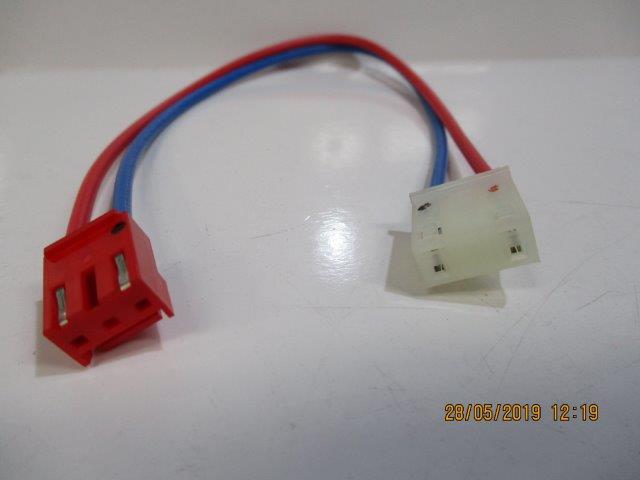

[23] In Stock

PCA504A247BH

HARNESS ASSY

Notes: PWB4 CNO1- PWB1 CNA1 Show Image

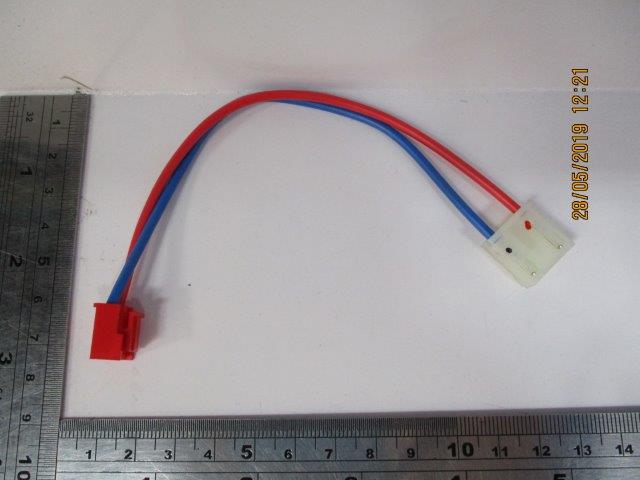

[24] In Stock

PCA504A247BK

HARNESS ASSY

Notes: PWB4 CNO2- PWB1 CNA2 Show Image

[25] Contact

PCB504A284Y

WIRING ASSY

Contact

Notes: 63H-1 1,63H-1 2- PWB1 CNH

[26] Contact

PCA504A243BW

WIRING ASSY

Contact

Notes: 52C1 A1 52X1 5,52C1 A2 52X1 6- PWB1 CNM

[27] Contact

PCA504A247DT

WIRING ASSY

Contact

Notes: PWB3 L1o,PWB3 No,PWB3 L2o- PWB1 CNW,PWB4 CNW1

[28] In Stock

PCA504A247DV

WIRING ASSY

Notes: TB 2,TB 3- PWB1 CNW2

[29] In Stock

PCB555B003B

DIODE

Show Image

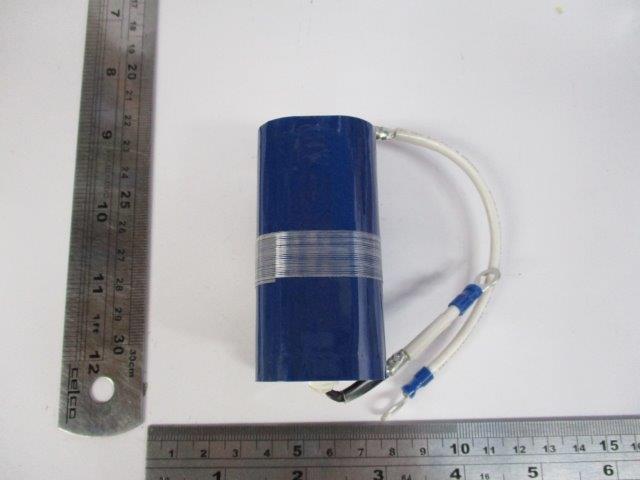

[30] In Stock

PCB552F006D

CAPACITOR

Show Image

[32] Contact

PCA552F004A

CAPACITOR,ASSY

Contact

[33] Contact

S750W30X

GROMMET

Contact

Notes: D35

[34] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[35] Contact

PSC011G571

LABEL,WIRING

Contact

[36] Contact

PSB011F105C

LABEL,MODEL NAME

Contact
