DXC48VNX/1 CONTROL AND PARTS SET

Name: DXC48VNX/1 CONTROL AND PARTS SET
SKU: DXC48VNX/1 CONTROL AND PARTS SET
Availability: InStock

DXC48VNX/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

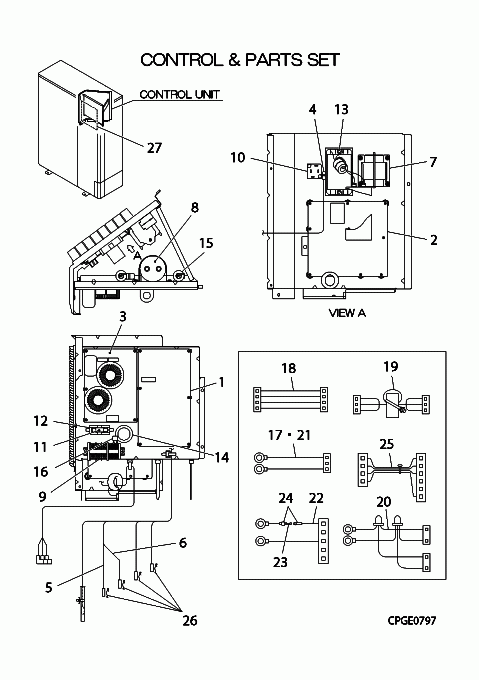

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A323JR

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS PWB1, PWB1 - CONTROL

[1-25] Contact

PCA501A182B

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[2] In Stock

PCA505A194DM

PWB ASSY(INVERTER)

Notes: ONLY FOR SUPPLY PARTS PWB2, INVERTER BOARD - PWB2 (SCREWS NOT INCLUDED) Show Image

[3] In Stock

PCA505A127B

PWB ASSY (NOISE.FILTER)

Notes: ONLY FOR SUPPLY PARTS PWB3, PWB3 NOISE FILTER Show Image

[4] Out of Stock

SSA551A192L

SENSOR

Substitute: SSA551A256L Notes: THO-AF, THO-IPM THO-TR THO-AF Show Image

[5] In Stock

PSA551A014P

SENSOR ASSY

Notes: THO-O,S,D,R1, THO-A,S,D,R1 - WHITE PLUG WITH 6 BLACK WIRES AND 2 YELLOW WIRES Show Image

[6] In Stock

PSY551A004J

SENSOR

Notes: THO-R2 Show Image

[7] In Stock

SSA554B092

REACTOR

Notes: L1

[8] In Stock

SSA552F601

CAPACITOR

Notes: C1, 450v 2700mf, COMPRESSOR CAPACITOR Show Image

[9] In Stock

SSA561B693C

BLOCK TERMINAL

Notes: TB Show Image

[10] Out of Stock

SSA555A662

DIODE

Substitute: PCA008A276A Notes: DIODE STACK/DIODE MODULE/DIODE BRIDGE Show Image

[11] In Stock

PCA006A091

FUSE(CURRENT)

Notes: F 30A, 30A FUSE - HAS SOLDERED WIRES ON EACH END Show Image

[12] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[13] In Stock

SSA556J035A

IC (ACTIVE CONVERTER)

Notes: A/F MODULE (Active Filter Module) - Also known as ACT/IPM Show Image

[14] Contact

S750W30

GROMMET

Contact

Notes: D35, D35¯¿½

[15] In Stock

SSA554D183

KILLER,NOISE

Show Image

[16] In Stock

PCA552F004

CAPACITOR ASSY

Notes: 0.01MF-275V-VERY SMALL CAPACITOR - 1CM APPROX - WITH ALIGATOR CLIPS Show Image

[17] In Stock

PCA504A264FW

WIRING ASSY

Notes: TB 2,TB 3- PWB1 CNW2 Show Image

[18] In Stock

PCA504A264GA

WIRING ASSY

Notes: PWB1 CNI1- PWB2 CNI2 Show Image

[19] In Stock

PCA504A264FB

WIRING ASSY¯¿½

Notes: PWB1 CNI3- PWB2 CNI4, PWB1 CNI3-PWB2 CNI4¯¿½

[20] In Stock

PCA504A264HP

WIRING ASSY

Notes: C1 +,C1 -- PWB1 CNA1,PWB1 CNA2, C1 +,C1 -- PWB1 CNA1,PWB1 CNA2/ LENGTH 27CM Show Image

[21] In Stock

PCA504A246CC

WIRING ASSY

Notes: TB 2,TB 3- PWB3 CN1, PWB3 CN1-TB 1,TB 2 Show Image

[22-24] In Stock

PCA504A272Z

WIRING ASSY

Notes: PWB3 L1 ,PWB3 N - PWB1 CNW, PWB3 L1O,PWB3 NO- PWB1 CNW Show Image

[23] In Stock

SSA564A149AG

FUSE(CURRENT)¯¿½

Notes: 4A, F 4A¯¿½- 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[24] In Stock

RWC564B002

HOLDER,FUSE¯¿½

Show Image

[25] In Stock

PCA504A264HC

WIRING ASSY

Notes: PWB2 CNACT1- LACT CNACT, 4 black wires with white plugs PWB2-ACTIVE FILTER MODULE. One plug is slightly smaller than the other. (PWB2 CNACT1- LACT CNACT)/ LENGTH 55.5CM Show Image

[26] In Stock

PSA941F001

SPRING LEAF

Notes: FOR THO-R1,R2,D,S, 1pc ONLY Show Image

[27] Contact

PSC011G564C

LABEL,WIRING

Contact

Notes: !

[28] Contact

PSB011F138D

LABEL,MODEL NAME

Contact

Notes: !
