DXC34VNX HEAT EXCH. ASSY

Name: DXC34VNX HEAT EXCH. ASSY
SKU: DXC34VNX HEAT EXCH. ASSY
Availability: InStock

DXC34VNX HEAT EXCH. ASSY

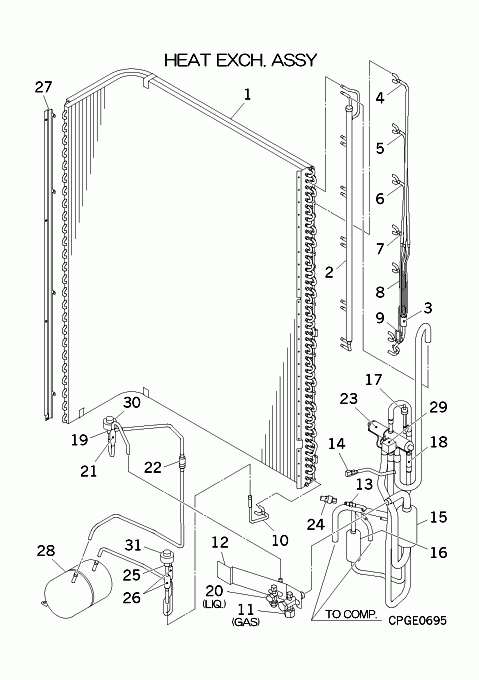

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PCA311A057

HEAT EXCH(AIR)

Contact

Notes: See part HEAT EXCH *ASSY*

[1-10] In Stock

PCA301A146B

HEAT EXCH ASSY(AIR)

Notes: ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***

[2] Contact

PCA315D188A

HEADER ASSY,GAS

Contact

[3] Contact

SSA315A302

DISTRIBUTOR

Contact

[3-9] Contact

PCA315A092C

DISTRIBUTOR ASSY

Contact

[4] Contact

PCA315B881

CAPILLARY ASSY(1)

Contact

Notes: !D2.8XD4.0 L300

[5] Contact

PCA315B882

CAPILLARY ASSY(2)

Contact

Notes: !D2.8XD4.0 L300

[6] Contact

PCA315B894

CAPILLARY ASSY(3)

Contact

Notes: !D2.8XD4.0 L300

[7] Contact

PCA315B883

CAPILLARY ASSY(4)

Contact

Notes: !D2.8XD4.0 L300

[8] Contact

PCA315B884

CAPILLARY ASSY(5)

Contact

Notes: !D2.8XD4.0 L300

[9] Contact

PCA315B885

CAPILLARY ASSY(6)

Contact

Notes: !D2.8XD4.0 L300

[10] Contact

PCA321C985A

PIPING ASSY

Contact

[11] In Stock

PCA381A112A

VALVE,SERVICE(5/8")

Notes: GAS

[12] Contact

PCA116A270

BRACKET

Contact

[13] In Stock

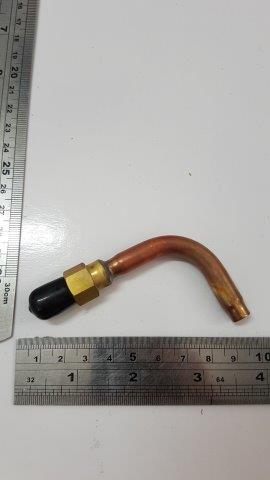

PCA327B056

VALVE ASSY,SERVICE

Show Image

[14] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[15] Contact

SSA325A001CL

PIPE,SHELL

Contact

[16] Contact

SSA325A001AG

PIPE,SHELL

Contact

[17] In Stock

SSA532A083

SWITCH HP

Notes: 63H1, (HIGH PRESSURE SWITCH) - 63H1 Show Image

[18] In Stock

SSA385A018A

VALVE CHECK

[19] In Stock

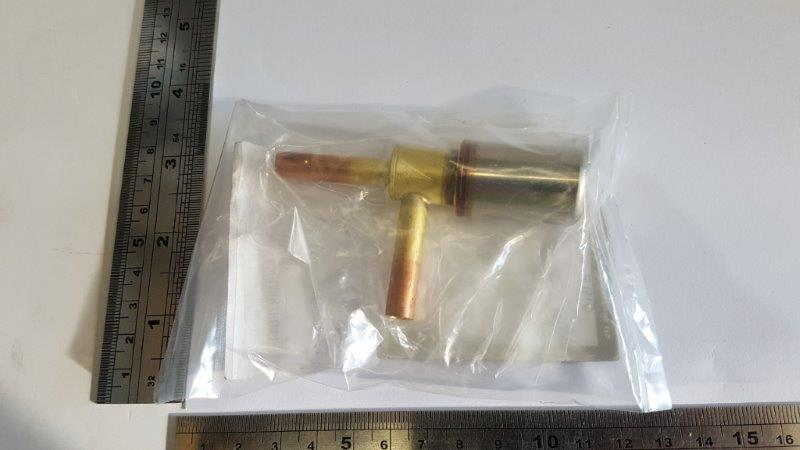

SSA387F044

EXP VALVE

Notes: EEVC or SM1, EEV Body Show Image

[19-22] In Stock

PCA387F048

EXP VALVE

[20] In Stock

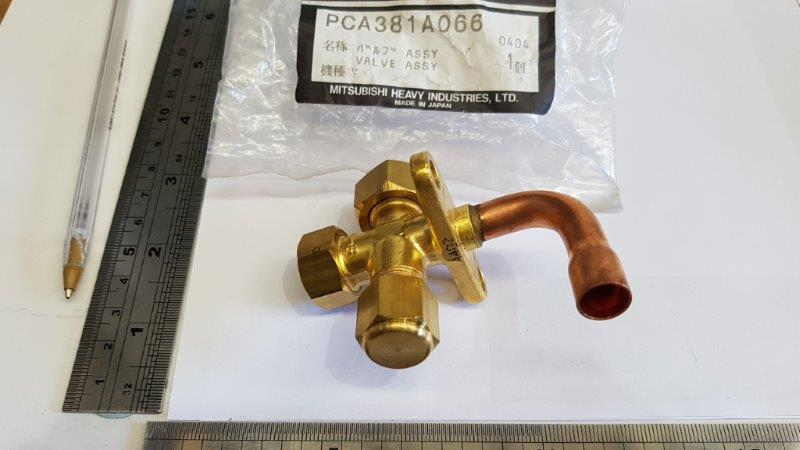

PCA381A066

VALVE ASSY

Notes: LIQ., 3/8" LIQUID Show Image

[21] In Stock

SSA357A059B

STRAINER

[22] In Stock

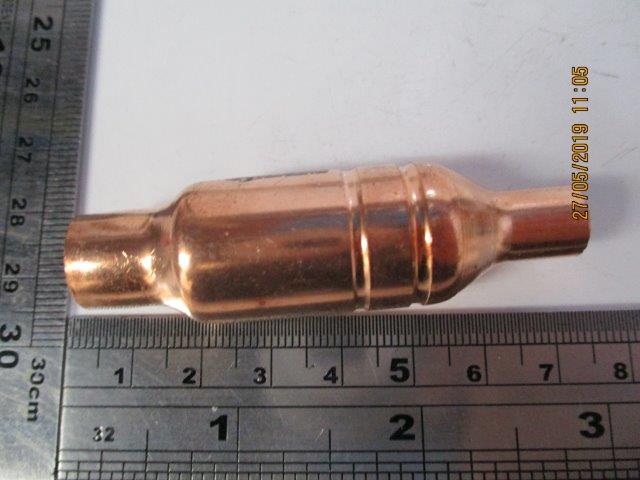

SSA357A005AA

STRAINER

Show Image

[23] In Stock

SSA382C096A

VALVE, S(4WAY)

Notes: 20S,20SL, Reversing Valve Body

[24] In Stock

SSA551D022C

SENSOR LP

Notes: LOW PRESSURE TRANSDUCER Show Image

[25] In Stock

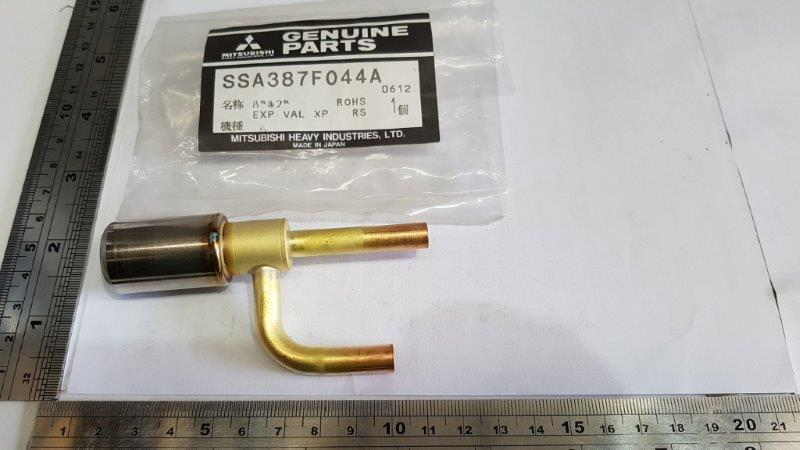

SSA387F044A

EXP VAL XP

Notes: EEV or SM2, EXPANSION VALVE BODY ONLY Show Image

[25-26] In Stock

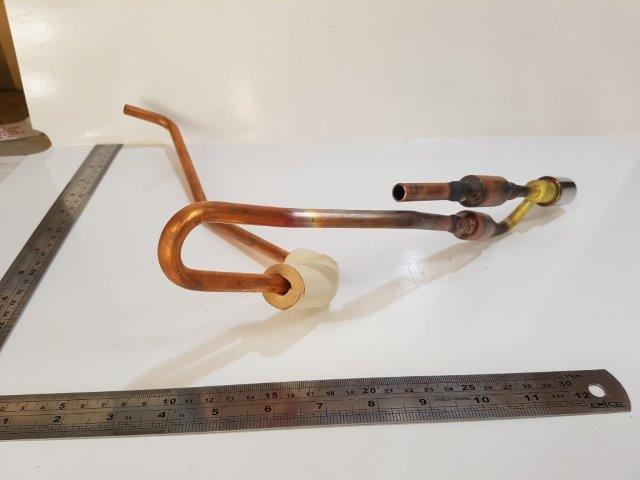

PCA387F035F

VALVE ASSY,EXP(HEATING)

Show Image

[26] In Stock

SSA357A059T

STRAINER

[27] Contact

PCA141A110

PLATE ASSY,BAFFLE

Contact

[28] In Stock

SSA352B052

RECEIVER

[29] In Stock

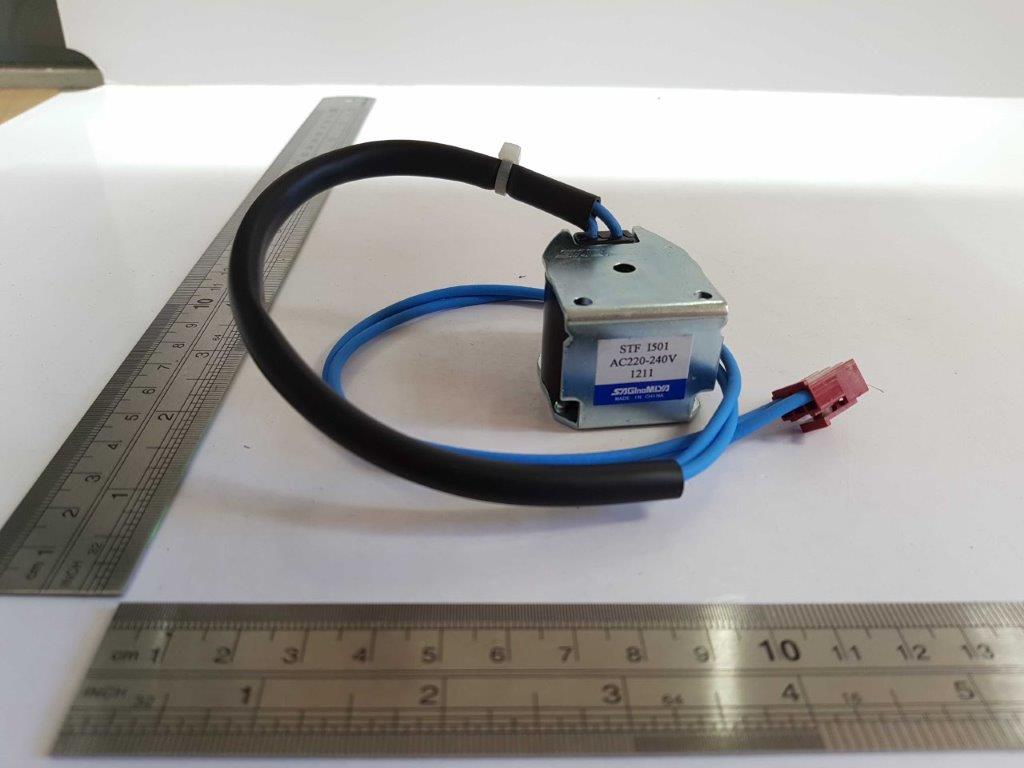

PCB382F107ZB

COIL ASSY, SOLENOID

Notes: FOR 20S, SOLENOID COIL FOR REVERSING VALVE/ LENGTH 55.5CM Show Image

[30] In Stock

PCA382F021

COIL SOLENOID

Notes: FOR EEVC, EEVC - COOLING EXPANSION VALVE SOLENDOID COIL - white plug

[31] In Stock

SSA382F229J

SOLENOID XP

Notes: FOR EEVH or SM2 Show Image

SKU: DXC34VNX HEAT EXCH. ASSY Category: Uncategorised
