DXC34VNX FAN AND COMPRESSOR

Name: DXC34VNX FAN AND COMPRESSOR
SKU: DXC34VNX FAN AND COMPRESSOR
Availability: InStock

DXC34VNX FAN AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

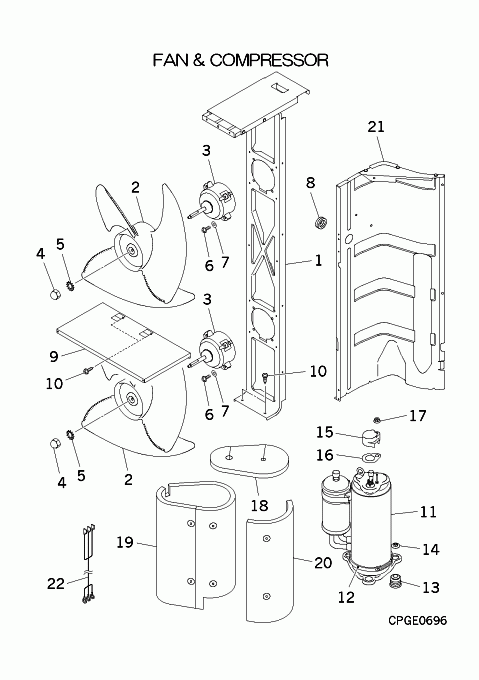

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA116A265

BASE,MOTOR

Notes: FAN MOTOR BRACKET

[2] In Stock

SSA431B228

FAN, PROPELLER

Notes: CONDENSER FAN BLADE

[3] In Stock

SSA512T076BA

MOTOR,DC

[4] In Stock

SSA914H014A

NUT

Notes: 1pc Show Image

[5] In Stock

SSA915F002D

WASHER

Notes: 1pc ONLY Show Image

[6] In Stock

SSA913C031A

SCREW TAP

Notes: 1pc ONLY Show Image

[7] In Stock

W200H06

WASHER

Notes: 1pc ONLY Show Image

[8] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[9] Contact

PCA141A096B

PLATE,BAFFLE

Contact

[10] In Stock

SSA913D020

SCREW TAP

Notes: M5X10, 1pc ONLY Show Image

[11] In Stock

AHT201F344DA

COMPRESSOR

Notes: RMT5134MDE2 ***COMPRESSORS CANNOT BE RETURNED***

[12] In Stock

PCA541B012N

HEATER

Notes: FOR COMPRESSOR

[13] In Stock

SSA941C246

CUSHION RUBBER

Notes: *1pc only* SOLD INDIVIDUALLY - RUBBER COMPRESSOR MOUNT - LENGTH 3.7CM Show Image

[14] In Stock

SSA914C033

NUT

Notes: 1pc

[15] In Stock

SSA947K026

COVER,TERMINAL

Show Image

[16] In Stock

SSA932C009A

GASKET,COVER

Show Image

[17] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

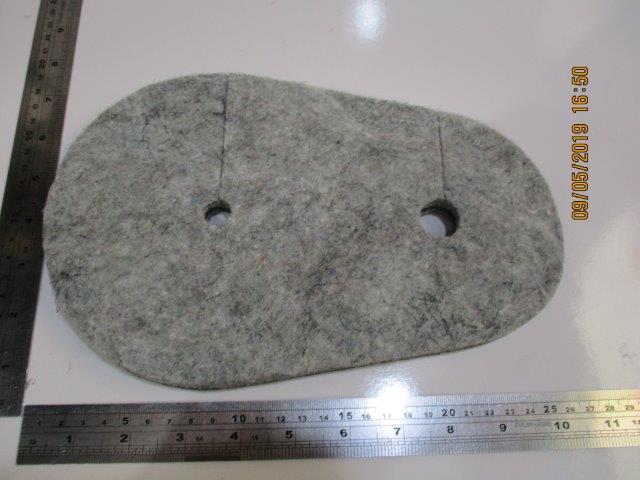

[18] In Stock

PCA151D088A

INSULATION,COMP

Show Image

[19] In Stock

PCA151D089A

INSULATION,COMP

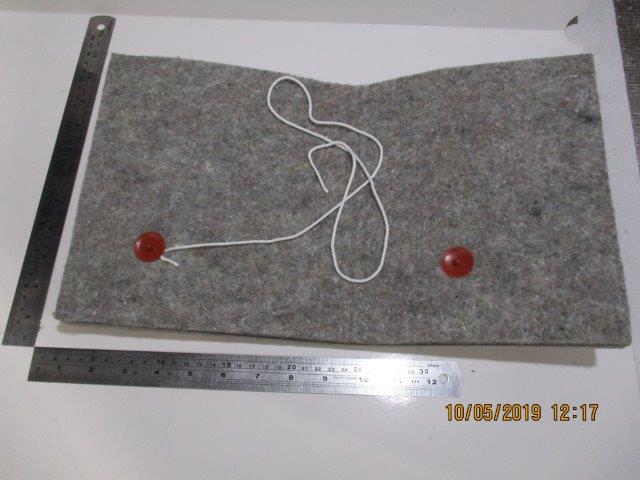

[20] In Stock

PCA151D092A

INSULATION,COMP

Show Image

[21] In Stock

PCA141A115

PLATE ASSY,BAFFLE

[22] In Stock

PCA504A264HF

WIRING ASSY

Notes: COMPRESSOR WIRING HARNESS

SKU: DXC34VNX FAN AND COMPRESSOR Category: Uncategorised
