DXC33ZRA-W PANEL ASSY

Name: DXC33ZRA-W PANEL ASSY
SKU: DXC33ZRA-W PANEL ASSY
Availability: InStock

DXC33ZRA-W PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

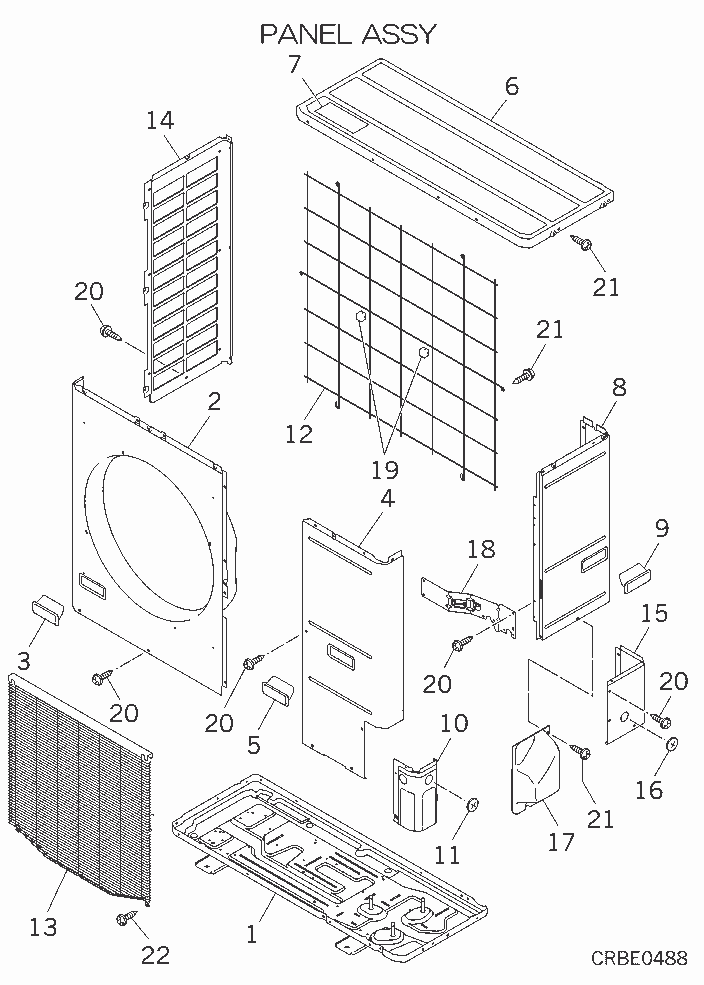

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCR111A102

BASE ASSY

[2-3] In Stock

PCA122A075C

PANEL ASSY,FRONT

[3] In Stock

SSA944B031A

HANDLE

Show Image

[4-5] In Stock

RCR122A100

PANEL ASSY,SERVICE

[5] In Stock

SSA944B031A

HANDLE

Show Image

[6-7] In Stock

RCR124A100

PANEL ASSY,TOP

[7] In Stock

RSA011H036B

LABEL,NOTICE

Notes: LENGTH 16.5CM Show Image

[8-9] In Stock

RCR125A100

PANEL ASSY,REAR

[9] In Stock

SSA944B031A

HANDLE

Show Image

[10-11] In Stock

PCA142A065F

COVER,FRONT

Notes: SMALL CORNER PANEL, BOTTOM FRONT/RIGHT SIDE Show Image

[11] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[12] Out of Stock

PCA131A033

GUARD,FIN

[13] In Stock

PCA131A044B

GUARD,FAN

[14] In Stock

PCA123A023

PANEL,SIDE(L)

[15-16] In Stock

RCR142A212

COVER,SIDE

[16] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[17] In Stock

RCR132A201

COVER,VALVE SERVICE

[18] Contact

RCR116A212A

BRACKET ASSY(VALVE

Contact

[19] In Stock

PCA941G004

CUSHION RUB

[20] In Stock

SSA913D020

SCREW TAP

Notes: M5x10, 1pc ONLY Show Image

[21] In Stock

SSA913D020A

SCREW,TAP & WASHER

Notes: M5x14, 1pc ONLY Show Image

[22] In Stock

SSA913D006A

SCREW 4X12

Notes: M4x12, 1pc ONLY

SKU: DXC33ZRA-W PANEL ASSY Category: Uncategorised
