DXC33ZRA-W HEAT EXCH. ASSY

Name: DXC33ZRA-W HEAT EXCH. ASSY
SKU: DXC33ZRA-W HEAT EXCH. ASSY
Availability: InStock

DXC33ZRA-W HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

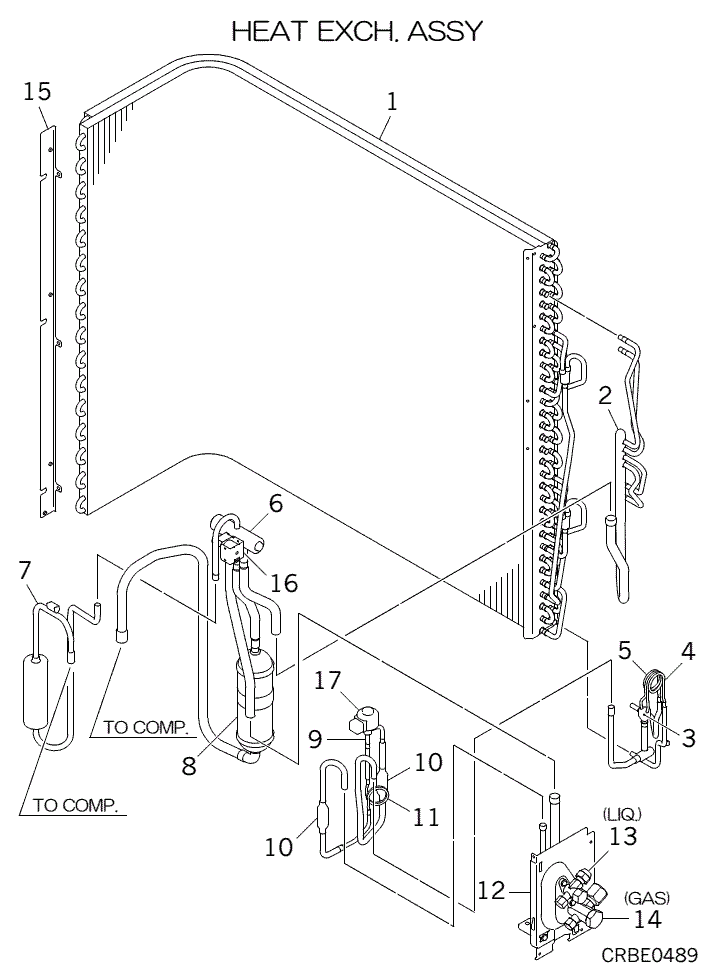

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-5] Out of Stock

RCR301A204C

HEAT EXCH ASSY(AIR)

Notes: Condenser Heat Exchanger Coil assembly

[2] Contact

RCR315D202

HEADER ASSY,GAS

Contact

[3] Contact

RSA315A004B

DISTRIBUTOR

Contact

[3-5] In Stock

RCR315A201B

DISTRIBUTOR ASSY

[4] In Stock

RCR315B012

CAPILLARY

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300/ LENGTH 9CM Show Image

[5] In Stock

RCR315B100

CAPILLARY

Notes: !D2.6XD4.0 L300, LENGTH 9CM Show Image

[6] In Stock

SSA382C098

VALVE S(4WAY)

Notes: 20S, reversing valve, body only Show Image

[7] Contact

RCR304A208

PIPING ASSY(DISCH)

Contact

[8] In Stock

AHT351A001

ACCUMULATOR

Show Image

[9] In Stock

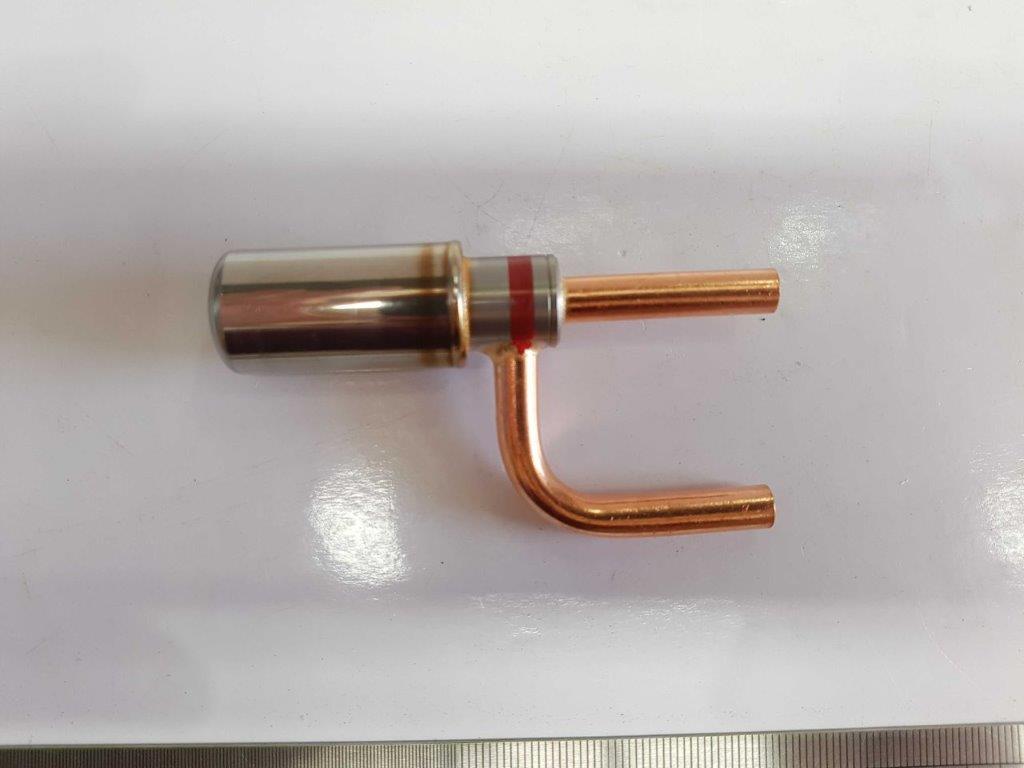

SSA387F059

VALVE,BODY(EXP)

Notes: EEV, EEV/ LENGTH 7.5CM Show Image

[9-11] In Stock

RCR304A202C

PIPING ASSY (EXPAN)-sub to 202B

Notes: includes Expansion Valve body, 2x Strainer & Capillary

[10] In Stock

SSA357A059B

STRAINER

[11] In Stock

RCV315B202A

CAPILLARY

Notes: D2.8xD3.6 L300, 2.6X4.0 L300/ LENGTH 8.3CM Show Image

[12] In Stock

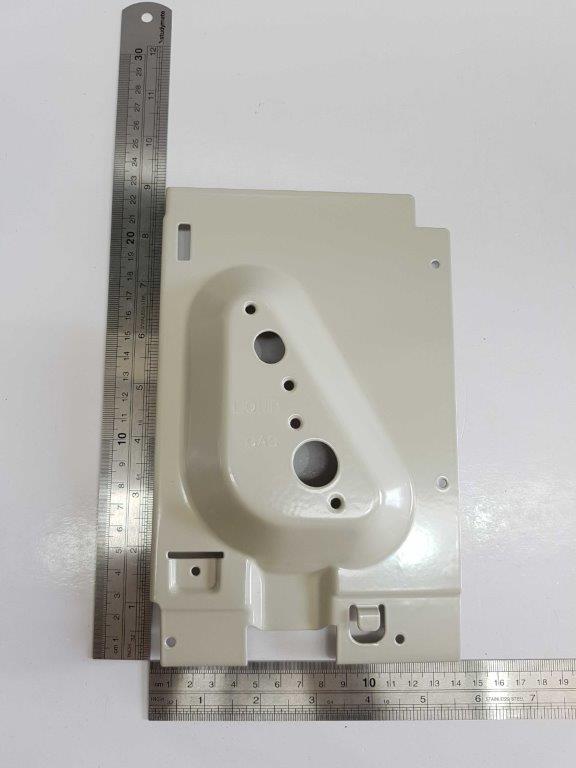

RCR116A225

BRACKET(VALVE)

Notes: LENGTH 19CM Show Image

[13] In Stock

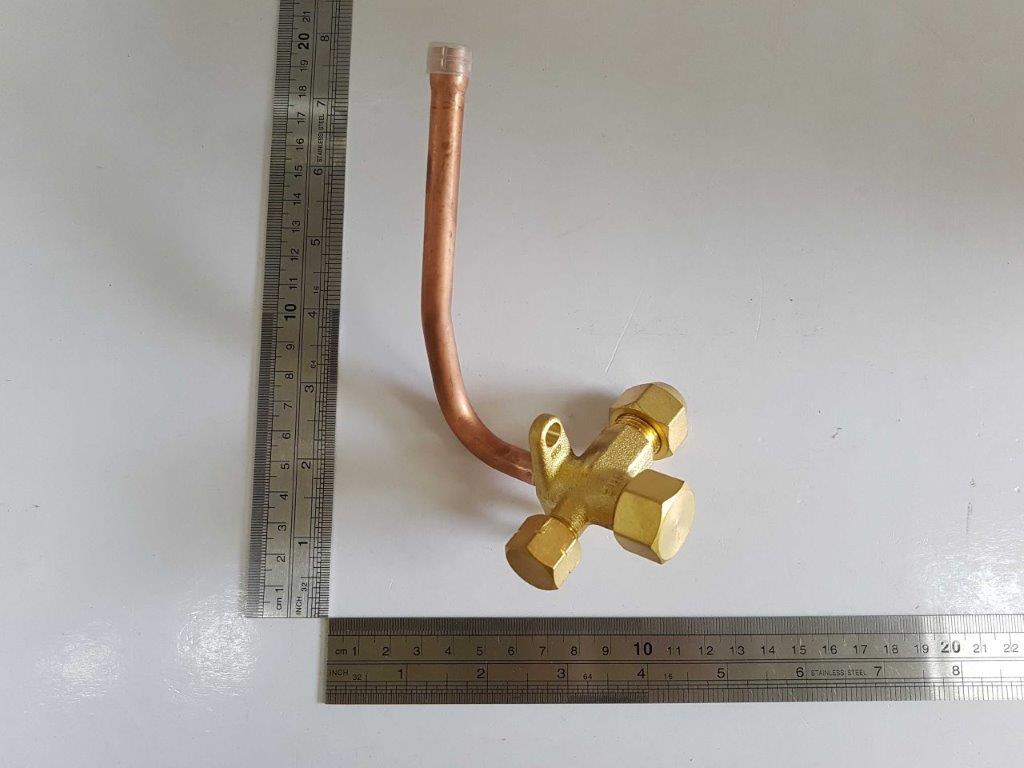

RCR381A200

VALVE,SERVICE(3/8")

Notes: LIQ. Show Image

[14] In Stock

RCR381A201

VALVE,SERVICE(5/8")

Notes: GAS

[15] In Stock

PCA141A100

PLATE,BAFFLE(L)

Notes: LENGTH 83.5CM Show Image

[16] In Stock

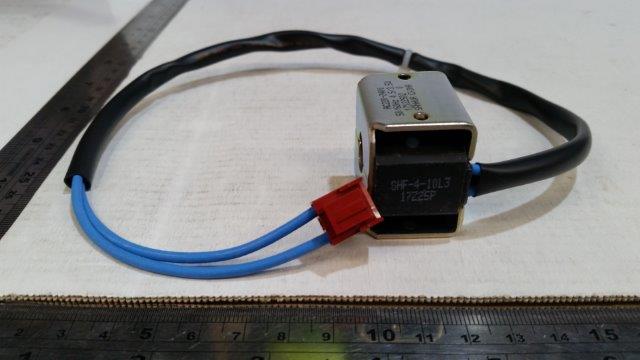

RSA382F013BD

COIL ASSY,SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL Show Image

[17] In Stock

SSA382F210L

COIL,SOLENOID

Notes: FOR EEV, SOLENOID COIL FOR EEV (ELECTRONIC EXPANSION VALVE)

SKU: DXC33ZRA-W HEAT EXCH. ASSY Category: Uncategorised
