DXC32ZMA-S PANEL ASSY

Name: DXC32ZMA-S PANEL ASSY
SKU: DXC32ZMA-S PANEL ASSY
Availability: InStock

DXC32ZMA-S PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

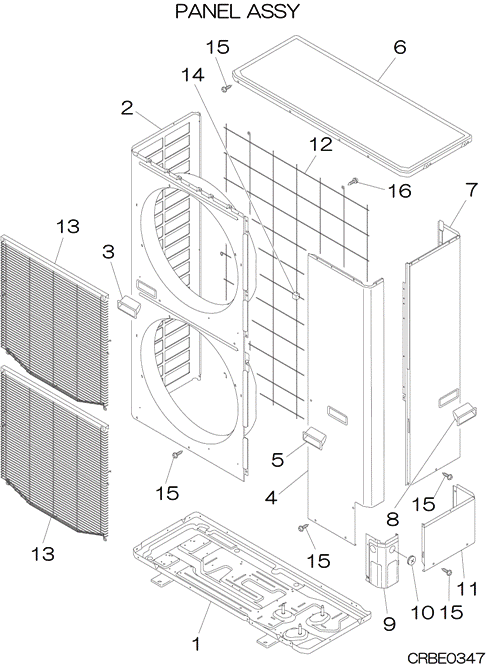

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCR111A102

BASE ASSY

[2-3] In Stock

PCA122A062

PANEL ASSY,FRONT

[3] In Stock

SSA944B031A

HANDLE

Show Image

[4-5] In Stock

RCR122A101

SERVICE PANEL

[5] In Stock

SSA944B031A

HANDLE

Show Image

[6] Out of Stock

RCR124A102

PANEL ASSY,TOP

Notes: LENGTH 98CM Show Image

[7-8] In Stock

RCR125A101

PANEL ASSY,REAR

[8] In Stock

SSA944B031A

HANDLE

Show Image

[9-10] In Stock

PCA142A065F

COVER,FRONT

Notes: SMALL CORNER PANEL, BOTTOM FRONT/RIGHT SIDE Show Image

[10] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[11] In Stock

PCA142A184B

COVER,SIDE

[12] In Stock

PCA131A032B

GUARD,FIN

[13] In Stock

PCA131A039

GUARD,FAN

Notes: 1pc ONLY

[14] In Stock

PCA941G004

CUSHION RUB

[15] In Stock

SSA913D020

SCREW TAP

Notes: M5X10, 1pc ONLY Show Image

[16] In Stock

SSA913D020A

SCREW,TAP & WASHER

Notes: M5X14, 1pc ONLY Show Image
