DXC32ZMA-S CONTROL AND PARTS SET

Name: DXC32ZMA-S CONTROL AND PARTS SET
SKU: DXC32ZMA-S CONTROL AND PARTS SET
Availability: InStock

DXC32ZMA-S CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

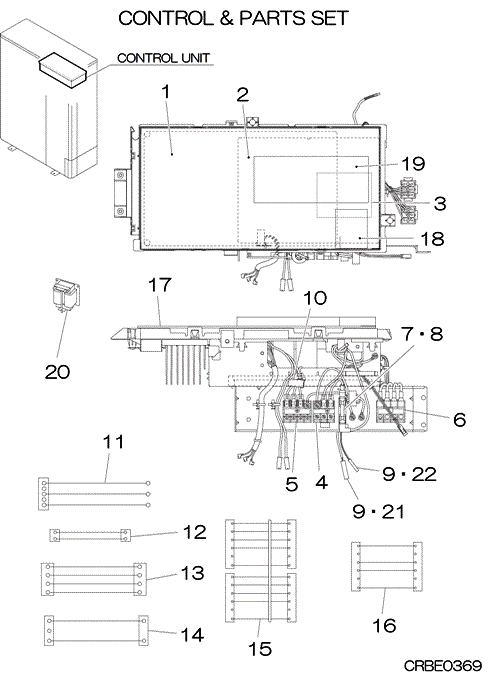

Check the parts position number [ ] matching with the drawing. Login to view prices.

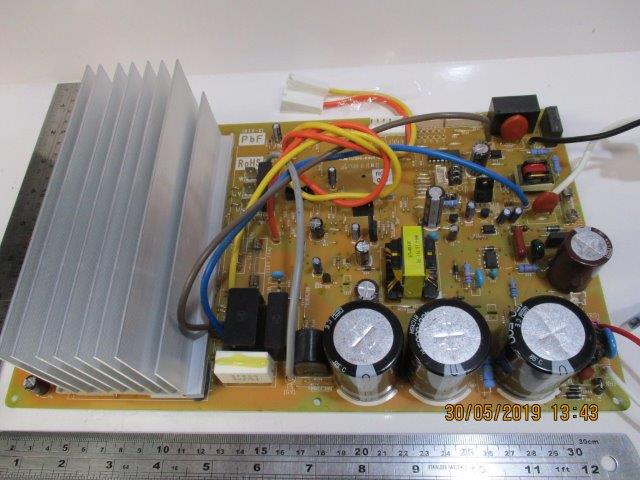

[1] In Stock

RCT505A302HC

PWB ASSY(MAIN)

Notes: PWB1, ***DOES NOT PLUG INTO FAN MOTORS*** PWB1 MAIN - INVERTER BOARD Show Image

[1-19] Contact

RCR501A113

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

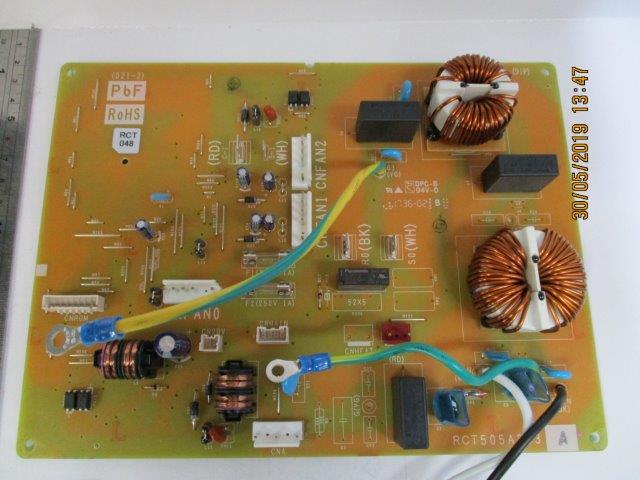

[2] In Stock

RCT505A303A

PWB ASSY(SUB)

Notes: PWB2, PWB2 - RUNS FAN MOTORS, BOTTOM BOARD Show Image

[3] In Stock

RCT505A304

DRED

Notes: PWB3, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[4] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[5] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[6] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: T3 Show Image

[7] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[8] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[9] In Stock

SSA551A233C

SENSOR ASSY

Notes: TH1,2,3, TH1,2,3 - includes 3 sensors Show Image

[10] In Stock

SSA554D173

CORE,FERRITE

[11] In Stock

RCR504A040

WIRING ASSY

Notes: PWB2 CNA-TB2 1,TB2 2,TB2 3 Show Image

[12] In Stock

RPC504A917A

HARNESS ASSY

Notes: PWB1 CN20V -PWB2 CN20V, TWO BLACK CABLES WITH WHITE PLUGS Show Image

[13] In Stock

RCT504A001A

HARNESS ASSY

Notes: PWB2 CNMAIN-PWB1 CNSUB, CNMAIN-PWB1 - CNSUB-PWB2 Show Image

[14] In Stock

RCR504A036A

HARNESS ASSY

Notes: PWB2 CN20S-20S Show Image

[15] In Stock

RCR504A039A

HARNESS ASSY

Notes: PWB2 CNFAN1,PWB2 CNFAN2- FM01,FM02, EXTENSION/ADAPTER CABLE FOR FAN MOTORS Show Image

[16] In Stock

RCT504A012

HARNESS ASSY

Notes: PWB1 CNFAN-PWB2 CNFAN0, PWB1-PWB2 (FOR THE FAN MOTOR) CNFAN Show Image

[17-19] In Stock

RCR142A103A

LID ASSY,CONTROL

[18] Contact

RCN011H500

LABEL NOTIC

Contact

[19] Contact

RCR011G103

LABEL,WIRING

Contact

[20] In Stock

SSA554B113

REACTOR

Show Image

[21] In Stock

RKJ941F001

SPRING LEAF

Show Image

[22] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[23] Contact

RCR011F100AD

LABEL,MODEL NAME

Contact
