DXC32ZL-S FAN AND COMPRESSOR

Name: DXC32ZL-S FAN AND COMPRESSOR
SKU: DXC32ZL-S FAN AND COMPRESSOR
Availability: InStock

DXC32ZL-S FAN AND COMPRESSOR

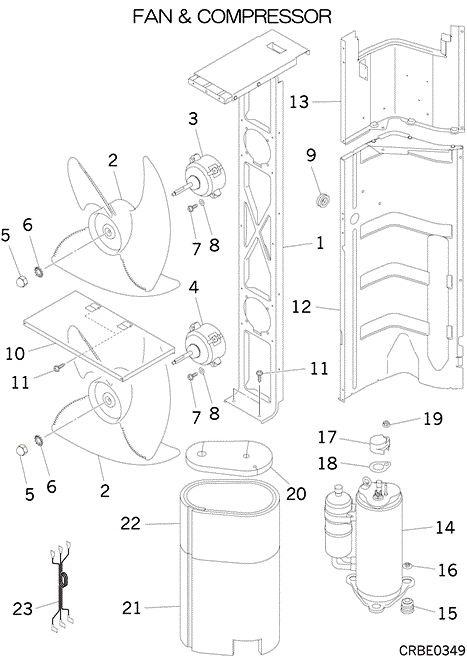

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCR116A115

BASE,MOTOR

[2] In Stock

SSA431B228

FAN, PROPELLER

Notes: CONDENSER FAN BLADE

[3] In Stock

SSA512T076BK

MOTOR DC

Notes: UPPER MOTOR

[4] In Stock

SSA512T076BJ

MOTOR DC

Notes: Lower

[5] In Stock

SSA914H014A

NUT

Notes: 1pc Show Image

[6] In Stock

SSA915F002D

WASHER

Notes: 1pc ONLY Show Image

[7] In Stock

SSA913C031A

SCREW TAP

Notes: 1pc ONLY Show Image

[8] In Stock

W200H06

WASHER

Notes: 1pc ONLY Show Image

[9] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[10] Contact

PCA141A096B

PLATE,BAFFLE

Contact

[11] In Stock

SSA913D020

SCREW TAP

Notes: M5X10, 1pc ONLY Show Image

[12] Contact

RCR141A104

PLATE ASSY,BAFFLE

Contact

[13] Contact

RCR141A107

PLATE ASSY,BAFFLE(U)

Contact

[14] In Stock

AHT201F264C

COMPRESSOR

Notes: RMT5126MCE1, ***COMPRESSORS CANNOT BE RETURNED***

[15] In Stock

SSA941C246

CUSHION RUBBER

Notes: *1pc only* SOLD INDIVIDUALLY - RUBBER COMPRESSOR MOUNT - LENGTH 3.7CM Show Image

[16] In Stock

SSA914C033

NUT

Notes: 1pc

[17] In Stock

SSA947K026

COVER,TERMINAL

Show Image

[18] In Stock

SSA932C009A

GASKET,COVER

Show Image

[19] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[20] In Stock

RCR154D104A

INSULATION,COMP

Show Image

[21] In Stock

RCR154D105

INSULATION,COMP

[22] In Stock

RCR154D106

INSULATION,COMP

[23] In Stock

RCR504A037

WIRING ASSY

Notes: COMPRESSOR WIRING HARNESS/ LENGTH 115CM Show Image
