DXC28ZMA-S HEAT EXCH. AND CONTROL

Name: DXC28ZMA-S HEAT EXCH. AND CONTROL
SKU: DXC28ZMA-S HEAT EXCH. AND CONTROL
Availability: InStock

DXC28ZMA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

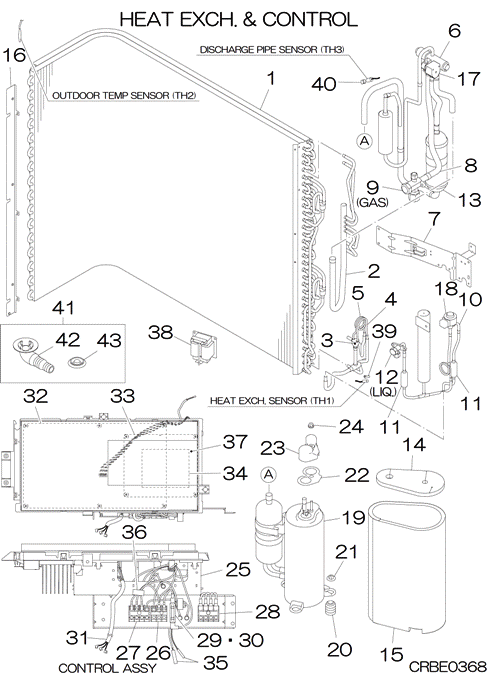

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock

RCT504A001

HARNESS ASSY

Notes: CNSUB-CNMAIN, CNMAIN TO CNSUB - 4 black wires with white plug Show Image

[1-5] In Stock

RCR301A100

HEAT EXCH ASSY(AIR)

Notes: OUTDOOR HEAT EXCHANGER COIL ASSEMBLY

[2] Contact

RCR315D100

HEADER ASSY,GAS

Contact

[3] Contact

RSA315A004B

DISTRIBUTOR

Contact

[3-5] Contact

RCR315A100

DISTRIBUTOR ASSY

Contact

[4] In Stock

RCR315B012

CAPILLARY

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300/ LENGTH 9CM Show Image

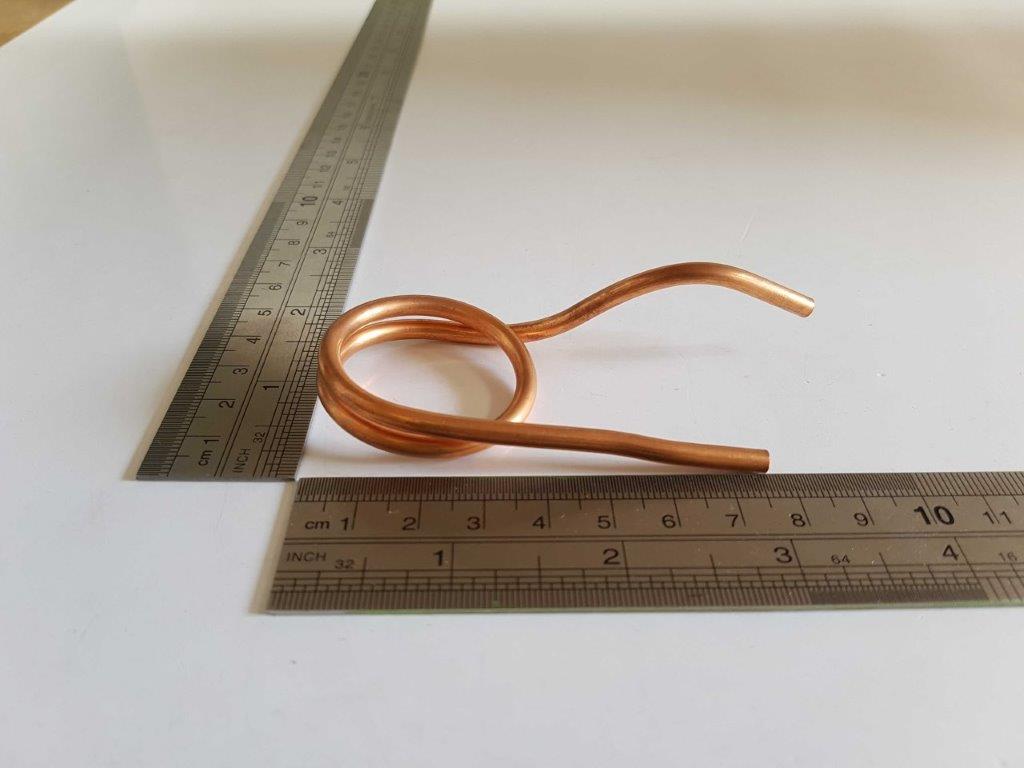

[5] In Stock

RCR315B100

CAPILLARY

Notes: !D2.6XD4.0 L300, LENGTH 9CM Show Image

[6] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

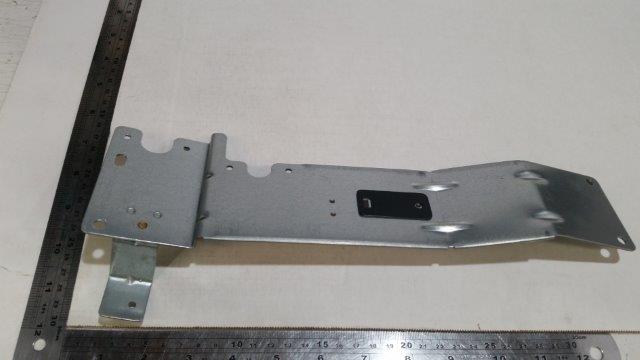

[7] In Stock

RCR116A102

BRACKET ASSY(VALVE)

Show Image

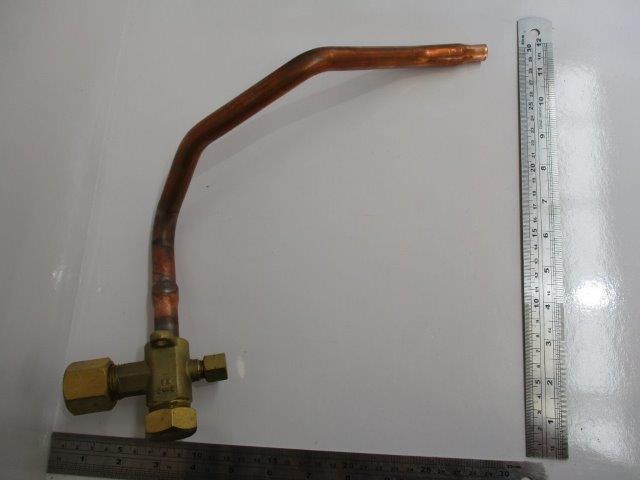

[8-9] In Stock

RCR304A105A

PIPING ASSY

Show Image

[9] In Stock

PCA381A062C

VALVE,SERVICE(5/8")

Notes: GAS, GAS / SUCTION SERVICE VALVE - 5/8'

[10] In Stock

SSA387F052

VALVE,BODY(EXP)

Notes: EEV, EEV‚ - Expansion Valve Body - Body only Show Image

[10-12] In Stock

RCR304A103

PIPING ASSY(EXPAN)

Notes: includes Expansion Valve Body, Strainer & Liquid Service Valve

[11] In Stock

SSA357A005A

STRAINER

Show Image

[12] In Stock

RCR381A100

VALVE,SERVICE(1/4")

Notes: LIQ. Show Image

[13] In Stock

AHT351A001

ACCUMULATOR

Show Image

[14] Contact

RCR154D102A

INSULATION,COMP

Contact

[15] In Stock

RCR154D101

INSULATION,COMP

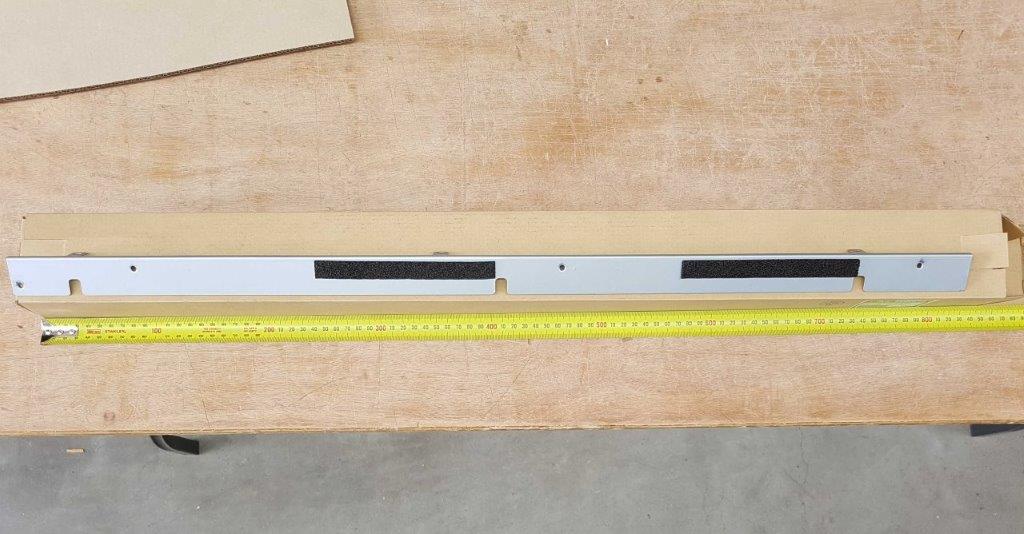

[16] In Stock

PCA141A100

PLATE,BAFFLE(L)

Notes: LENGTH 83.5CM Show Image

[17] In Stock

RPC382F900

COIL ASSY, SOLENOID

Notes: FOR 20S, for extension harness see [45] RCR504A036B, REVERSING VALVE SOLENOID COIL Show Image

[18] In Stock

RCM382F001G

COIL,SOLENOID(EEV)

Notes: FOR EEV, HAS HARNESS ATTACHED-WHITE PLUG, MULTI COLOR WIRES Show Image

[19] In Stock

AHT201C184DA

COMPRESSOR ASSY

Notes: RMT5118MDE2, ***COMPRESSORS CANNOT BE RETURNED*** (RMT5118MDE2)

[20] In Stock

SSA941C351A

CUSHION,RUBBER

Notes: For Compressor - Sold individually

[21] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[22] In Stock

RSA932C004

GASKET

Show Image

[23] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[24] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[25] In Stock

RPC142A902

BOX,CONTROL(A)

[26] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[27] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[28] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: T3 Show Image

[29] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[30] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[31] In Stock

RPC504A912A

WIRING ASSY

Notes: FOR COMP. Show Image

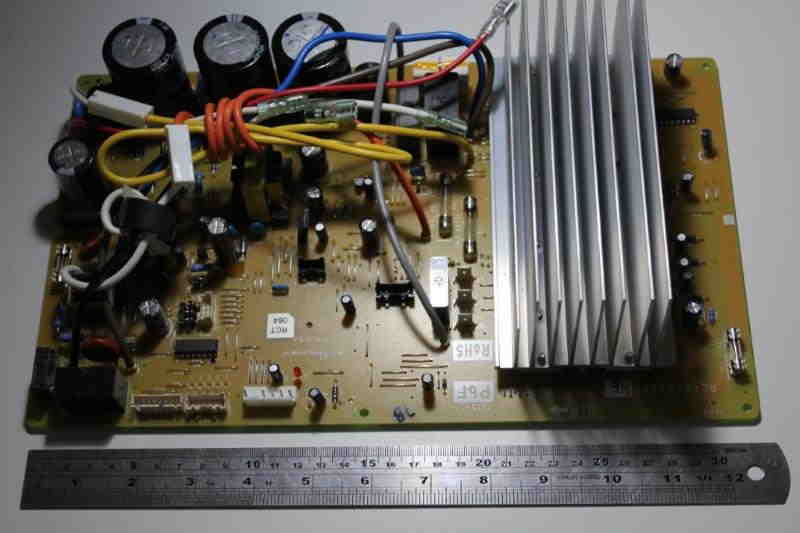

[32] In Stock

RCT505A302HB

PWB ASSY(MAIN)

Notes: PWB1, LARGER BOARD, PLUGS INTO SENSORS, EEV, FAN MOTOR & COMPRESSOR Show Image

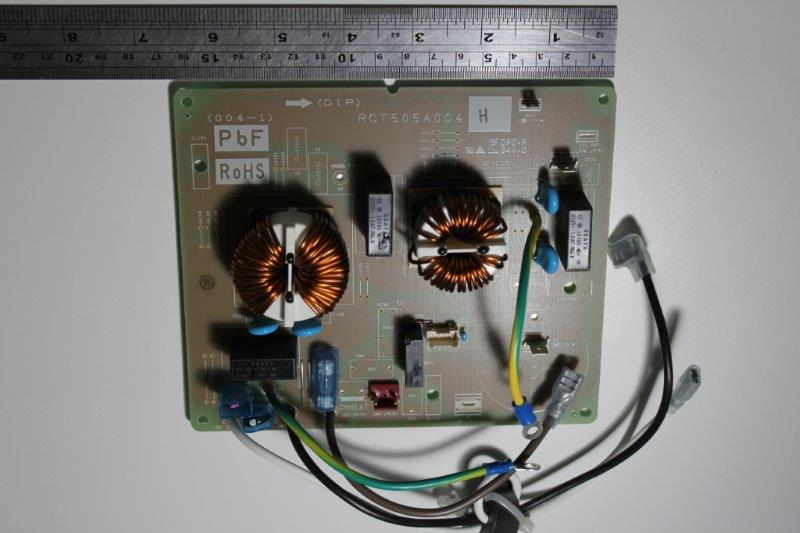

[33] In Stock

RCT505A004H

PWB ASSY(SUB)

Notes: PWB2, PWB2. CONNECTS TO REVERSING VALVE ***Keep reversing valve harness*** Show Image

[34] In Stock

RCT505A304

DRED

Notes: PWB3, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[35] In Stock

SSA551A233A

SENSOR ASSY

Notes: TH1-2-3, OUTDOOR SENSOR ASSEMBLY - 3 Sensors

[36] In Stock

SSA554D173

CORE,FERRITE

[37] Contact

RCR011G200

LABEL,WIRING

Contact

[38] In Stock

SSA554B113

REACTOR

Show Image

[39] In Stock

RKJ941F001

SPRING LEAF

Show Image

[40] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[41] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[42] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[43] In Stock

SSA947A089

GROMMET

Notes: D20.1, SSA422A024 ELBOW Show Image

[44] Contact

RCR011F100AB

LABEL,MODEL NAME

Contact

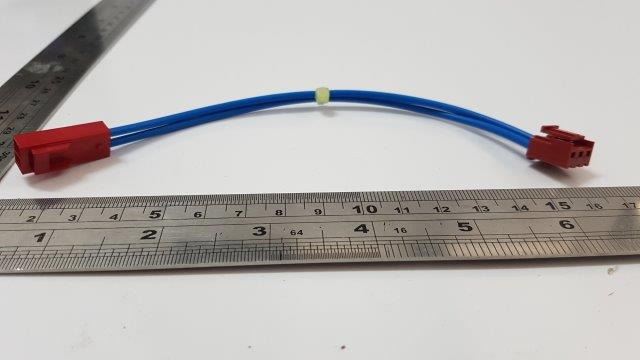

[45] In Stock

RCR504A036B

HARNESS ASSY

Notes: WIRING EXTENTION BETWEEN PWB ASSY (SUB) and REVERSING VALVE SOLENOID COIL (20S) Show Image
