DXC24ZRA-W PANEL AND FAN ASSY

Name: DXC24ZRA-W PANEL AND FAN ASSY
SKU: DXC24ZRA-W PANEL AND FAN ASSY
Availability: InStock

DXC24ZRA-W PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

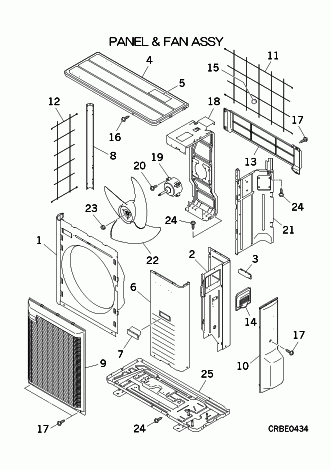

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCR122A001F

PANEL ASSY,FRONT

[2-3] In Stock

RCR125A200

PANEL ASSY,REAR

[3] In Stock

SSA944B031A

HANDLE

Show Image

[4-5] In Stock

RCR124A002S

PANEL ASSY,TOP

Notes: COMES WITH WARNING LABEL RSA011H036B

[5] In Stock

RSA011H036B

LABEL,NOTICE

Notes: LENGTH 16.5CM Show Image

[6] In Stock

RCR122A006B

PANEL,SERVICE

[6-7] In Stock

RCR122A004A

PANEL ASSY,SERVICE

[7] In Stock

SSA944B031A

HANDLE

Show Image

[8] In Stock

RCR115A002A

SUPPORT,CORNER

[9] In Stock

RCR435A002

GRILLE AIR OUT

Notes: FAN GUARD/FAN GRILLE

[10] In Stock

RCR132A004

COVER ASSY

Notes: PLASTIC

[11] In Stock

RCR131A201

GUARD,FIN(A)

[12] In Stock

RCR131A002

GUARD,FIN(B)

[13] In Stock

RCR131A200

GUARD,FIN

[14] In Stock

RCR132A002

COVER,TERMINAL

Show Image

[15] In Stock

RCR941G001

CUSHION,RUBBER

Notes: ! Show Image

[16] In Stock

SSA913A034F

SCREW,TAP

Notes: 4X8, 1pc ONLY, 4X8 Show Image

[17] In Stock

SSA913A034L

SCREW,TAP

Notes: 4X12, 1pc ONLY

[18] In Stock

RCR116A001D

BRACKET,MOTOR

[19] In Stock

SSA512T076BM

MOTOR DC

[20] In Stock

SSA913B038

SCREW,TAP

Notes: 1pc ONLY - FOR FAN MOTOR Show Image

[21] Contact

RCR141A204

PLATE ASSY,BAFFLE

Contact

Substitute: RCR141A204A

[22] In Stock

SSA431B256

FAN, PROPELLER

Notes: FAN BLADE

[23] In Stock

SSA914B007AD

NUT

Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image

[24] In Stock

W011D04X008

TAP SCREW

Notes: 4X8, 1pc ONLY Show Image

[25] In Stock

RCR111A003D

BASE ASSY
