DXC24Z4-S HEAT EXCH. AND CONTROL

Name: DXC24Z4-S HEAT EXCH. AND CONTROL
SKU: DXC24Z4-S HEAT EXCH. AND CONTROL
Availability: InStock

DXC24Z4-S HEAT EXCH. AND CONTROL

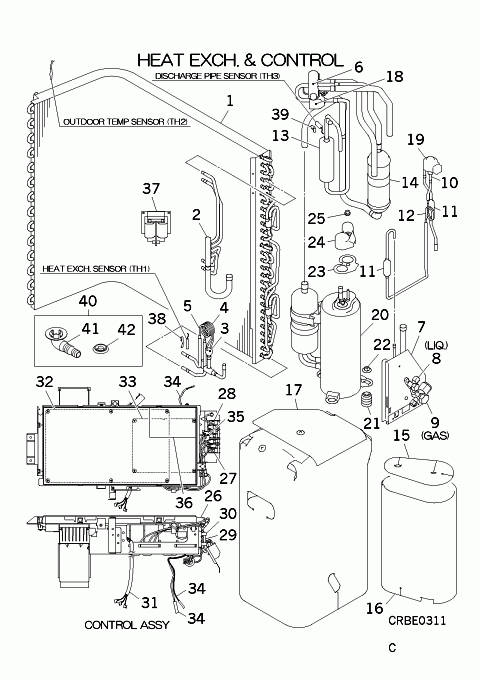

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock

RCT504A001

HARNESS ASSY

Notes: CNSUB-CNMAIN, CNMAIN TO CNSUB - 4 black wires with white plug Show Image

[1-5] In Stock

RCR301A005

HEAT EXCH ASSY(AIR)

Notes: Condenser heat exchanger coil

[2] Contact

RCR315D004

HEADER ASSY,GAS

Contact

[3] Contact

RSA315A004B

DISTRIBUTOR

Contact

[3-5] In Stock

RCR315A002

DISTRIBUTOR ASSY

Show Image

[4] In Stock

RCR315B012

CAPILLARY

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300/ LENGTH 9CM Show Image

[5] Contact

RCR315B013

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[6] In Stock

SSA382C068

4 WAY VALVE

Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image

[7] In Stock

RCR116A003

BRACKET(VALVE)

Show Image

[8] In Stock

RCR381A003B

VALVE,SERVICE(1/4")

Notes: LIQ., LIQUID LINE SERVICE VALVE - 1/4' - LIQ. Show Image

[9] In Stock

RCR381A004

VALVE,SERVICE(5/8)

Notes: GAS, 5/8" GAS (SUCTION)

[10] In Stock

SSA387F052

VALVE,BODY(EXP)

Notes: EEV, EEV‚ - Expansion Valve Body - Body only Show Image

[10-12] In Stock

RCR304A008A

PIPING ASSY(EXPAN)

Notes: Includes Expansion Valve Body, 2x Strainer & Capillary

[11] In Stock

SSA357A005A

STRAINER

Show Image

[12] In Stock

RCP315B002

CAPILLARY,SUB

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.5CM Show Image

[13] Out of Stock

PCA325A007

PIPE SHELL

[14] In Stock

AHT351A001

ACCUMULATOR

Show Image

[15] Contact

RPC154D903

INSULATION,COMP

Contact

Notes: COMP UPPER

[16] Contact

RPC154D904

INSULATION,COMP

Contact

Notes: COMP BODY

[17] Contact

RCR154D005

INSULATION

Contact

[18] In Stock

RPC382F900

COIL ASSY, SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL Show Image

[19] In Stock

SSA382F210L

COIL,SOLENOID

Notes: FOR EEV, SOLENOID COIL FOR EEV (ELECTRONIC EXPANSION VALVE)

[20] In Stock

AHT201C184DA

COMPRESSOR ASSY

Notes: RMT5118MDE2, ***COMPRESSORS CANNOT BE RETURNED*** (RMT5118MDE2)

[21] In Stock

SSA941C351A

CUSHION,RUBBER

Notes: For Compressor - Sold individually

[22] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[23] In Stock

RSA932C004

GASKET

Show Image

[24] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[25] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[26] In Stock

RPC142A902

BOX,CONTROL(A)

[27] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[28] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[29] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[30] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[31] In Stock

RPC504A912A

WIRING ASSY

Notes: FOR COMP. Show Image

[32] In Stock

RCT505A005NA

PWB ASSY(MAIN)

Notes: PWB1 INVERTER, Service Code /C uses different PC board. Please confirm Service Code before ordering Show Image

[33] In Stock

RCT505A004D

PWB ASSY(SUB)

Notes: PWB2, PWB2 SUB Show Image

[34] In Stock

SSA551A233

SENSOR ASSY

Notes: TH1,TH2,TH3, . CONTAINS ALL SENSORS ON OUTDOOR UNIT Show Image

[35] In Stock

SSA554D173

CORE,FERRITE

[36] Contact

RCR011G004

LABEL,WIRING

Contact

[37] In Stock

SSA554B113

REACTOR

Show Image

[38] In Stock

RKJ941F001

SPRING LEAF

Show Image

[39] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[40] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[41] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[42] In Stock

SSA947A089

GROMMET

Notes: D20.1, SSA422A024 ELBOW Show Image

[43] Contact

RCR011F005M

LABEL,MODEL NAME

Contact
