DXC24VNX FAN AND COMPRESSOR

Name: DXC24VNX FAN AND COMPRESSOR
SKU: DXC24VNX FAN AND COMPRESSOR
Availability: InStock

DXC24VNX FAN AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

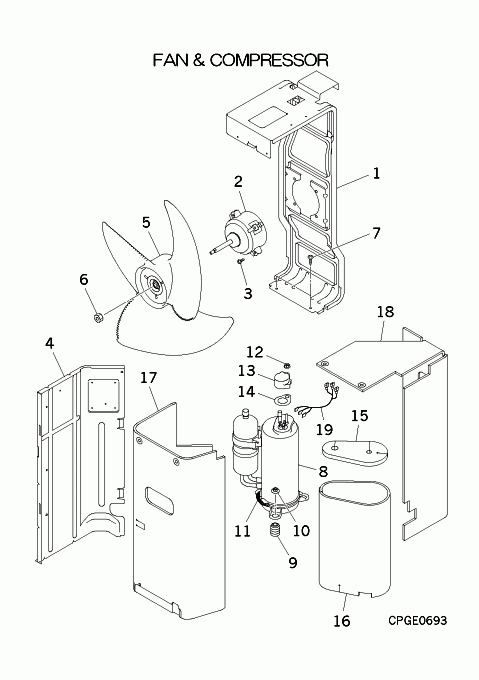

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCR116A001

BRACKET,MOTOR

[2] In Stock

SSA512T076BD

MOTOR,DC

[3] In Stock

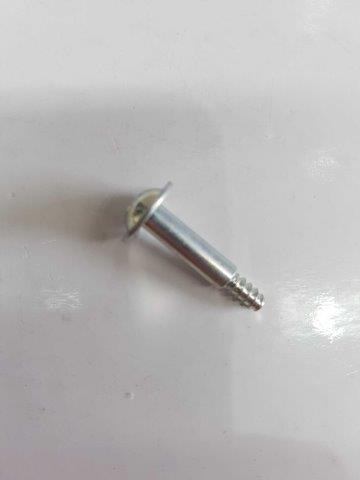

SSA913C031

SCREW,TAP & WASHER

Notes: 1pc ONLY/ LENGTH 2.7CM Show Image

[4] Contact

RCR141A001B

PLATE,BAFFLE

Contact

[5] In Stock

SSA431B256

FAN, PROPELLER

Notes: FAN BLADE

[6] In Stock

SSA914B007AD

NUT

Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image

[7] In Stock

W011D04X008

TAP SCREW

Notes: 4X8, 1pc ONLY Show Image

[8] In Stock

AHT201C184DA

COMPRESSOR ASSY

Notes: RMT5118MDE2, ***COMPRESSORS CANNOT BE RETURNED*** (RMT5118MDE2)

[9] In Stock

SSA941C351A

CUSHION,RUBBER

Notes: For Compressor - Sold individually

[10] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[11] Contact

PCA541B016G

HEATER ASSY(CRANK)

Contact

Substitute: PCA541B016P

[12] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[13] In Stock

SSA947K026

COVER,TERMINAL

Show Image

[14] Contact

SSA932C009

GASKET,COVER

Contact

[15] Contact

PCA151D106

INSULATION,COMP

Contact

[16] Contact

RPC154D904

INSULATION,COMP

Contact

Notes: COMP BODY

[17] Contact

PCA154D002

INSULATION

Contact

[18] Contact

PCA154D003

INSULATION

Contact

[19] In Stock

PCA504A251R

WIRING ASSY

Notes: FOR COMP.
