DXC24VNX/1 CONTROL AND PARTS SET

Name: DXC24VNX/1 CONTROL AND PARTS SET
SKU: DXC24VNX/1 CONTROL AND PARTS SET
Availability: InStock

DXC24VNX/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

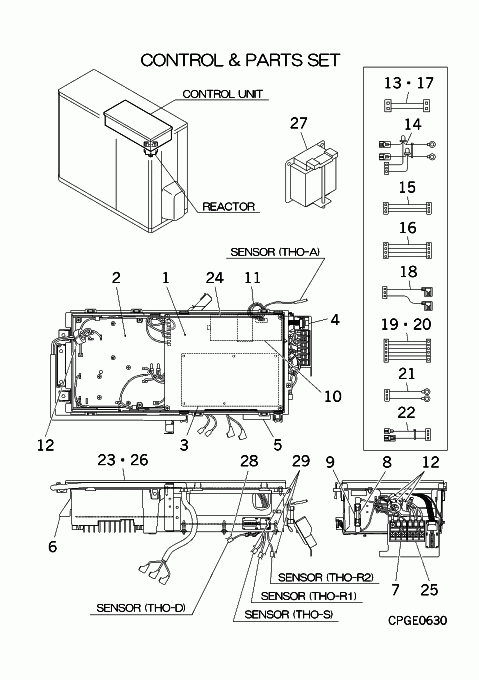

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

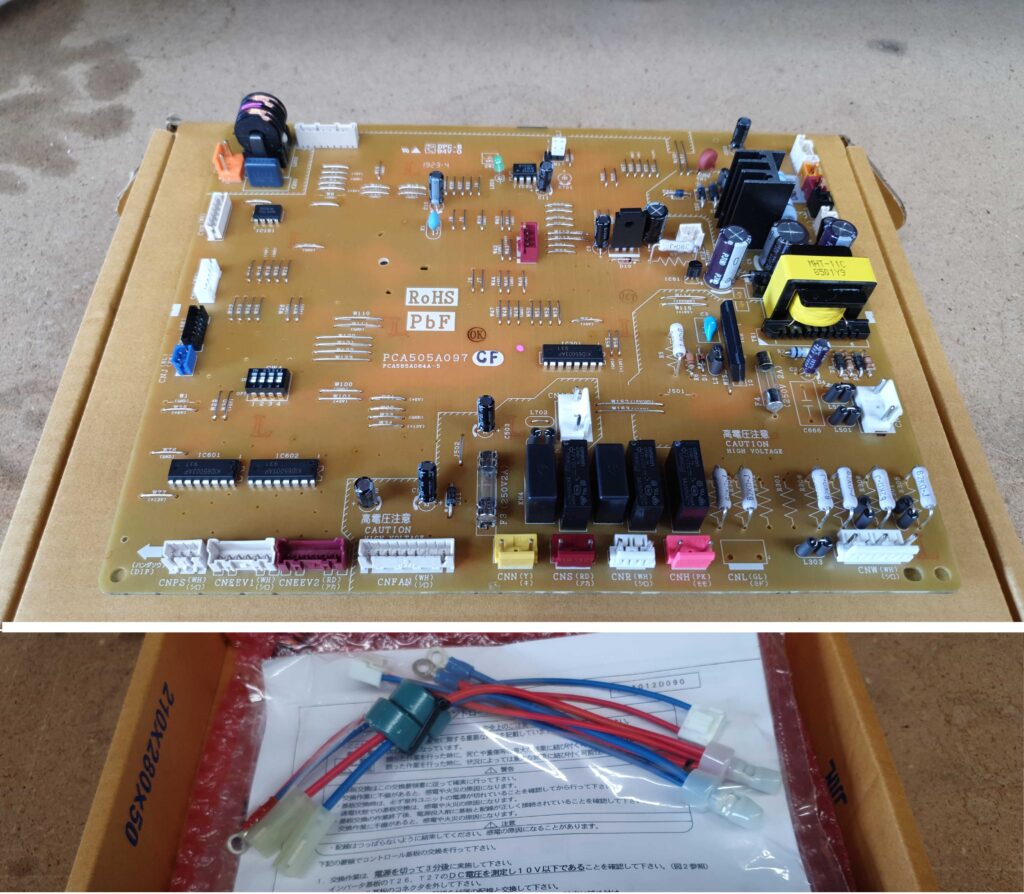

PCA505A322GC

PWB ASSY CONTROL

Notes: ONLY FOR SUPPLY PARTS PWB1, ***CONFIRM SERVICE CODE*** Comes with new CNA1/CNA2 connectors -Tech to read installation instructions. PWB1 - Connects to Fan Motor - Top Board Show Image

[1-25] Out of Stock

PCA501A183CA

CONTROL UNIT

Substitute: OUT OF PRODUCTION Notes: !, Not available

[2] In Stock

PCA505A232A

PWB ASSY (INVERTER)

Notes: ONLY FOR SUPPLY PARTS PWB2, ***CONFIRM SERVICE CODE*** Connects to Compressor. Comes with a (different looking) reactor - tech to read install instructions - (FACTORY PART PCA505A098G) Show Image

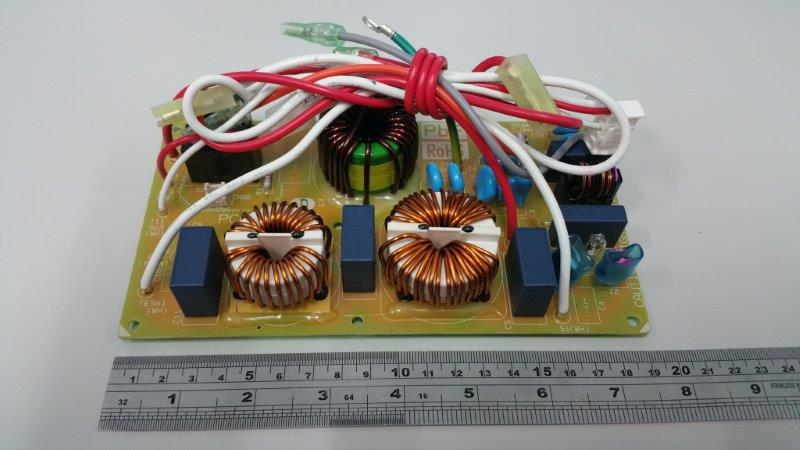

[3] In Stock

PCA505A096D

PWB ASSY (N.F)

Notes: PWB3, CONFIRM SERVICE CODE. NOISE FILTER Show Image

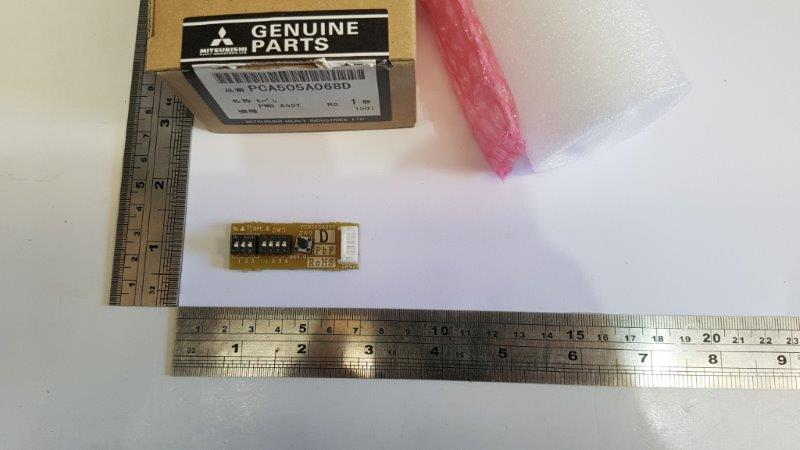

[4] In Stock

PCA505A068D

PWB ASSY

Notes: PWB4, HAS 7 DIPSWITCHES & A PUSH BUTTON Show Image

[5] In Stock

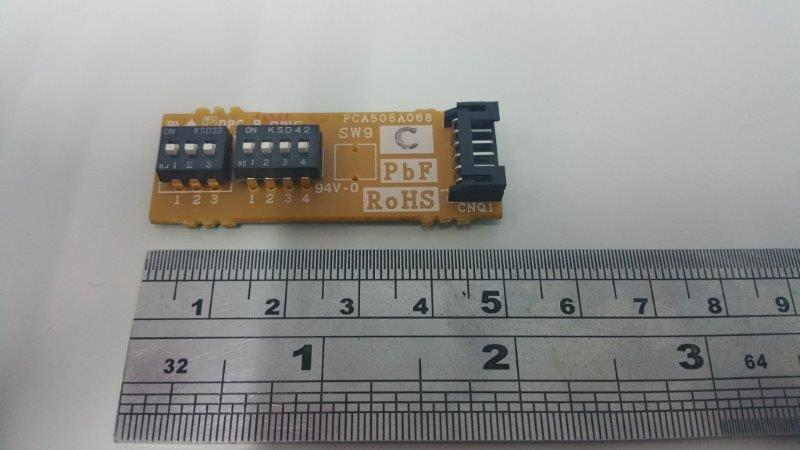

PCA505A068C

PWB ASSY

Notes: PWB5, BOARD HAS 7 DIP SWITCHES - DOES "NOT" HAVE PUSH BUTTON Show Image

[6] In Stock

RPC142A853

BOX,CONTROL(A)

Notes: !, BLACK PLASTIC FRAME

[7] In Stock

SSA561B665

BLOCK TERMI

Notes: TB, T1 Show Image

[8] In Stock

SSA564A117

FUSE(CURRENT)

Notes: F1 20A

[9] In Stock

SSA564B088

HOLDER,FUSE

Show Image

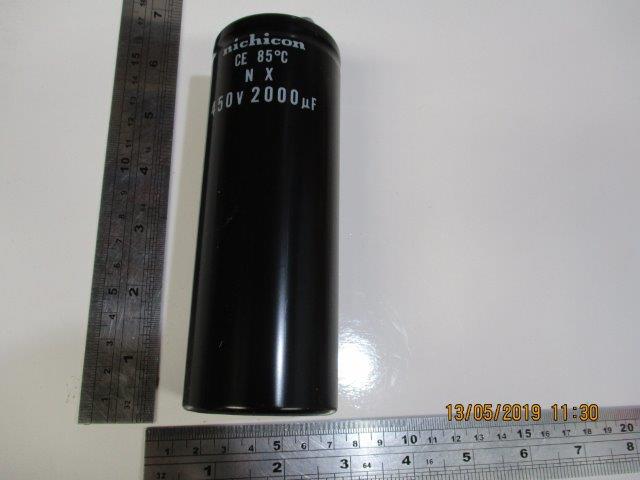

[10] In Stock

SSA552F399C

CAPACITOR

Notes: CA, C1 Show Image

[11] In Stock

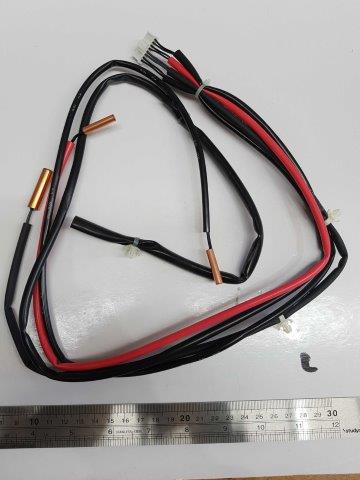

PCA551A032A

SENSOR ASSY

Notes: OUTDOOR SENSOR ASSEMBLY -THO-R,D,S,A/ LENGTH 97CM Show Image

[12] In Stock

SSA554D183

KILLER,NOISE

Show Image

[13] In Stock

PCA504A251L

WIRING ASSY

Notes: PWB3 CNO2- PWB2 CNO1, PWB3 CNO2-PWB2 CNO1

[14] In Stock

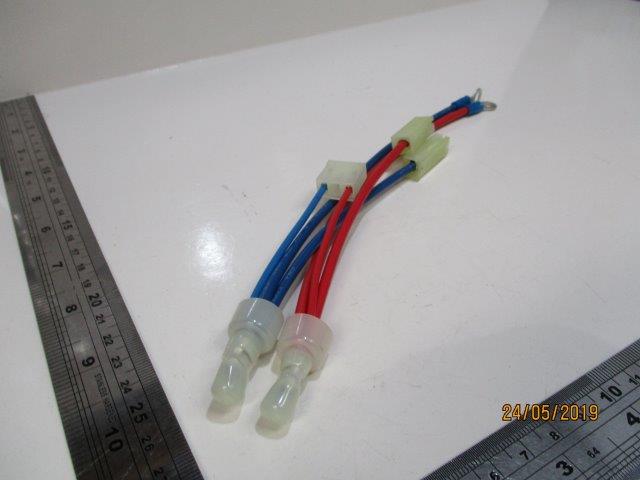

PCA504A251N

WIRING ASSY

Notes: PWB2 T26,PWB2 T27,PWB1 CNA- C1 +,C1 -, PWB2 T26,PWB2 T27,PWB1 CNA1-C1 +,C1 - Show Image

[15] Contact

PCA504A251Y

WIRING ASSY

Contact

Notes: PWB1 CNI3- PWB2 CNI4

[16] In Stock

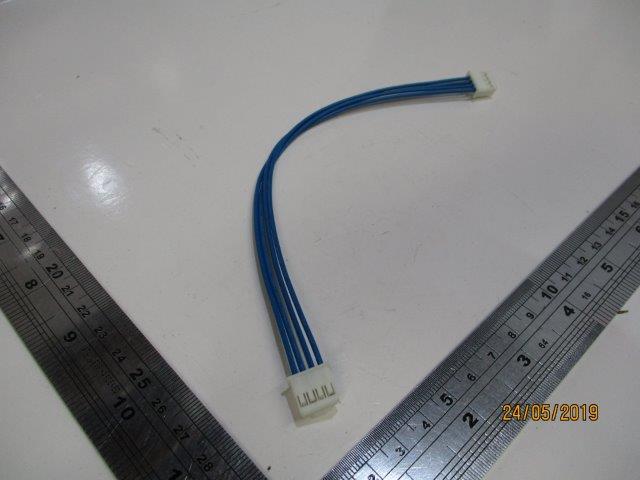

PCA504A251Z

WIRING ASSY

Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1-PWB2 CNI2 Show Image

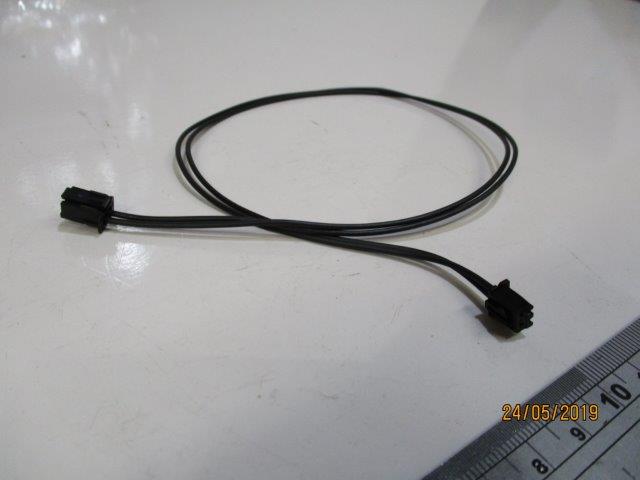

[17] In Stock

PCA504A251AA

WIRING ASSY

Notes: PWB1 CNG1- PWB2 CNG2, PWB1 CNG1-PWB2 CNG2 Show Image

[18] In Stock

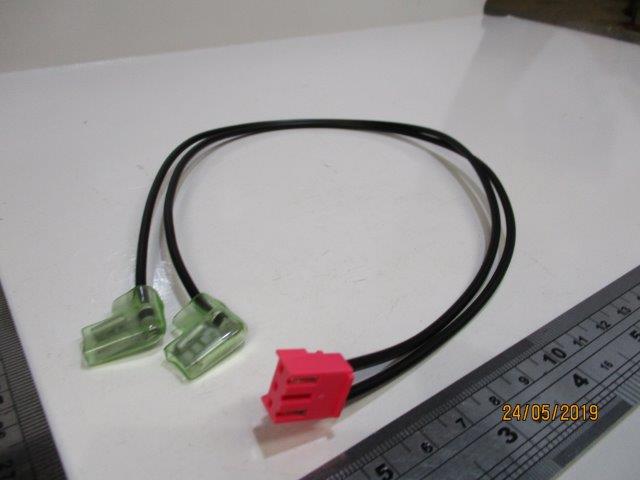

PCA504A251AC

WIRING ASSY

Notes: PWB1 CNH- 63H1 1,63H1 2, PWB1 CNH-63H1 1,63H1 2 Show Image

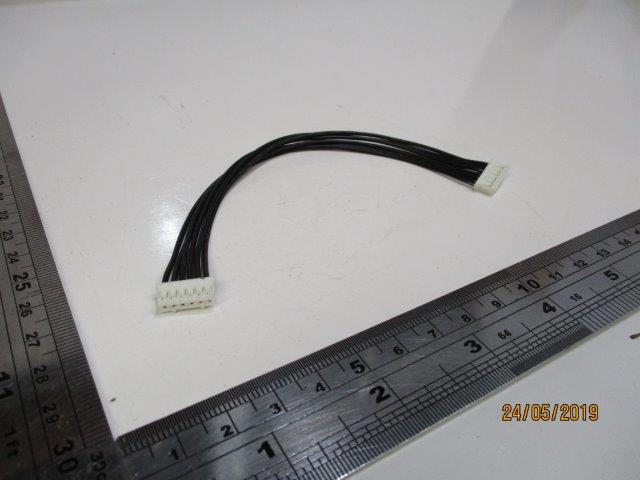

[19] In Stock

PCA504A251AD

WIRING ASSY

Notes: PWB1 CNQ1- PWB4 CNQ1, PWB1 CNQ1-PWB4 CNQ1 Show Image

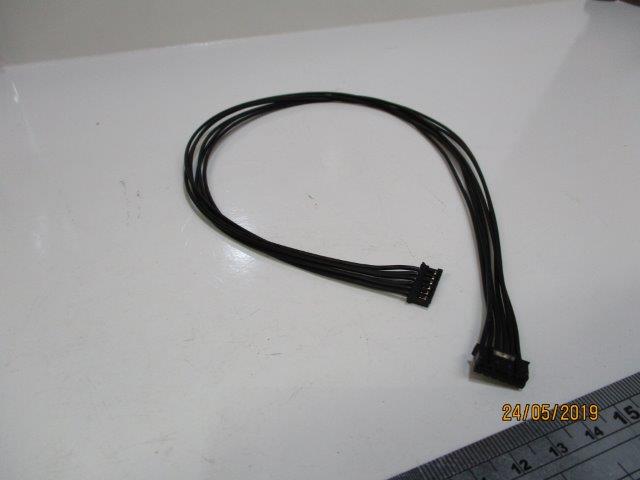

[20] In Stock

PCA504A251AF

WIRING ASSY

Notes: PWB1 CNSW- PWB3 CNQ1, PWB1 CNQ2-PWB5 CNQ1 Show Image

[21] In Stock

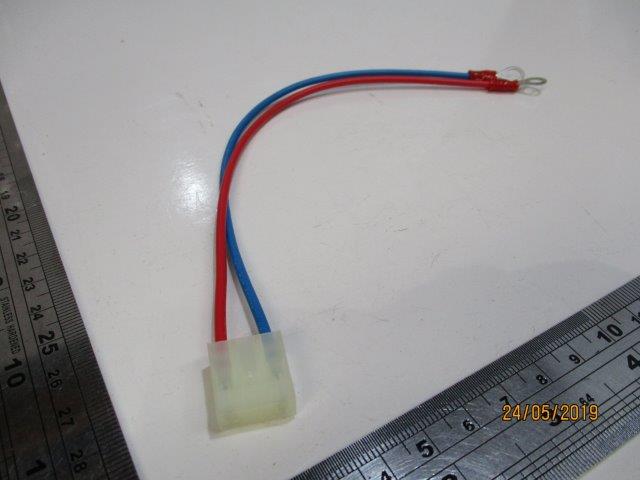

PCA504A251P

WIRING ASSY

Notes: PWB1 CNA2- C1 +,C1 -, PWB1 CNA2-C1 +,C1 - Show Image

[22] In Stock

PCA504A251AB

WIRING ASSY

Notes: TB1 2,TB1 3- PWB1 CNW2, TB1 2,TB1 3-PWB1 CNW2

[23] Contact

PCA142A153C

LID ASSY,CONTROL

Contact

[24] In Stock

PCB551A029F

SENSOR

Notes: THO-R2

[25] In Stock

SSA561B675A

BLOCK,TERMI

Notes: TB Show Image

[26] Contact

PSC011G566A

LABEL,WIRING

Contact

Notes: !

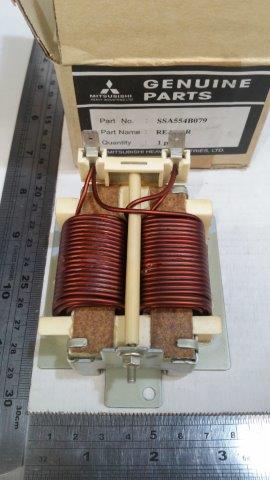

[27] In Stock

SSA554B079

REACTOR

Show Image

[28] In Stock

RCJ941F001

SPRING

Notes: FOR THO-D, LENGTH 2.5CM Show Image

[29] In Stock

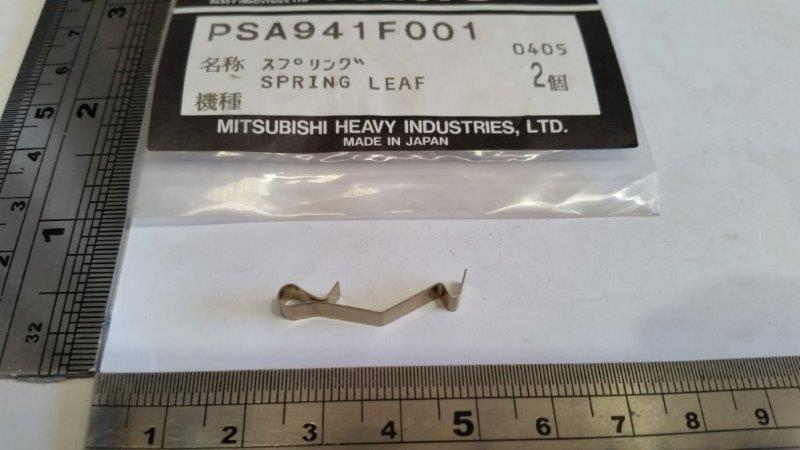

PSA941F001

SPRING LEAF

Notes: FOR THO-S,R1,R2, 1pc ONLY Show Image

[30] Contact

PSB011F138A

LABEL,MODEL NAME

Contact

Notes: !

SKU: DXC24VNX/1 CONTROL AND PARTS SET Category: Uncategorised
