DXC21ZTLA-W HEAT EXCH. AND CONTROL

Name: DXC21ZTLA-W HEAT EXCH. AND CONTROL
SKU: DXC21ZTLA-W HEAT EXCH. AND CONTROL
Availability: InStock

DXC21ZTLA-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

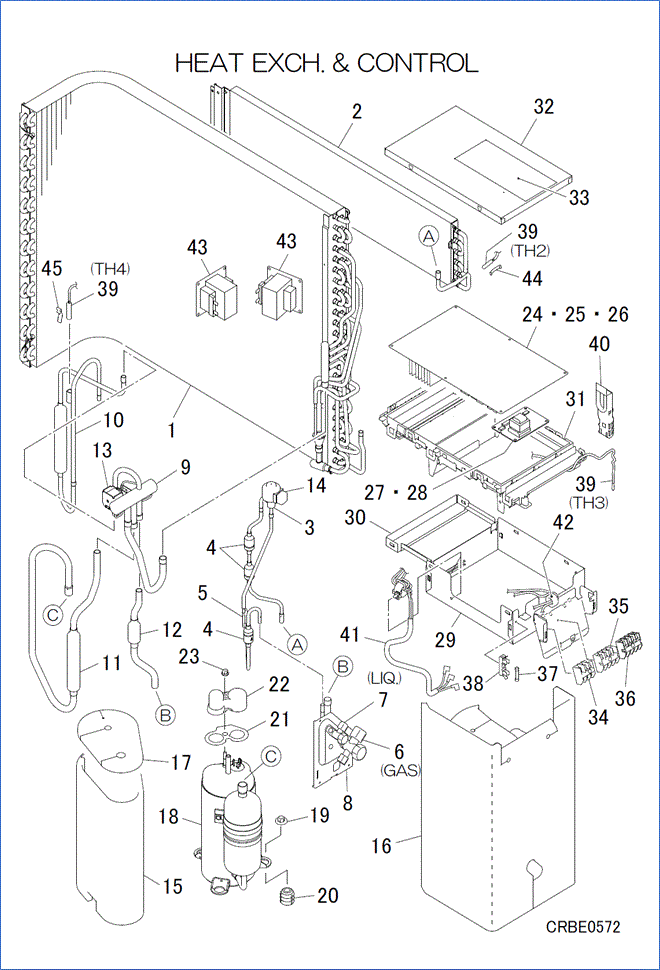

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCT301A940

HEAT EXCH ASSY (AIR)

[2] In Stock

RCT301A942

HEAT EXCH ASSY (AIR)

[3] In Stock

SSA387F079

VALVE, BODY (EXP)

Notes: EEV Show Image

[3-5] In Stock

RCT304A942

PIPING ASSY (EXPAN)

[4] In Stock

SSA357A059A

STRAINER

[5] In Stock

RCV315B202A

CAPILLARY

Notes: D2.6xD3.6 L300, 2.6X4.0 L300/ LENGTH 8.3CM Show Image

[6] In Stock

RCT381A002

SERVICE VALVE

Notes: GAS, VALVE,SERVICE (1/2") - GAS Show Image

[7] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[8] Out of Stock

RCS116A004B

BRACKET,VALVE

[9] In Stock

SSA382C108

VALVE, S(4WAY)

Notes: 20S

[10] Contact

RCT321A947

PIPE ASSY (DISCH)

Contact

[11] Contact

RCT321A950

PIPE ASSY (SUCTION)

Contact

[12] Contact

RCT321A481

PIPE ASSY (E)

Contact

[13] Contact

RSA382F022A

COIL ASSY, SOLENOID

Contact

Notes: FOR 20S

[14] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[15] Contact

RCT154D300

INSULATION

Contact

[16] Contact

RCT154D201B

INSULATION

Contact

[17] Contact

RCT154D302

INSULATION,COMP

Contact

[18] In Stock

AHT201C154W

COMPRESSOR ASSY

Notes: RMT5115SWE1, ***COMPRESSORS CANNOT BE RETURNED***

[19] Contact

SSA914C033A

NUT, FLANGE

Contact

[20] In Stock

SSA941C346A

CUSHION,RUBBER

Notes: 1pc, FOR COMPRESSOR Show Image

[21] In Stock

RSA932C004

GASKET

Show Image

[22] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[23] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[24-26] In Stock

RCR505A110FB

PWB ASSY

Notes: Main PCB

[25] In Stock

SSA564A132

FUSE(CURRENT)

Notes: F13.15A, 3.15A Show Image

[26] In Stock

SSA564A149ZA

FUSE(CURRENT)

Notes: F31A

[27-28] In Stock

RCT505A304D

PWB ASSY (DRED)

[28] In Stock

SSA564A149AC

FUSE(CURRENT)

Notes: F12A

[29] In Stock

RCT142A201A

BOX ASSY,CONTROL

[30] In Stock

RCR132A200

COVER,CONTROL

[31] In Stock

RCR142A202A

BOX,CONTROL

[32-33] In Stock

RCT142A202K

LID ASSY, CONTROL

[33] Contact

RCR011G201L

LABEL, WIRING

Contact

[34] In Stock

SSA561B665

BLOCK TERMI

Notes: TB1, T1 Show Image

[35] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: TB2, T2 Show Image

[36] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: TB3, T3 Show Image

[37] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: F20A, F 20A‚ - 20 amp fuse Show Image

[38] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[39] In Stock

SSA551A245

SENSOR ASSY

Notes: TH2,3,4, TH1,2,3 Show Image

[40] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

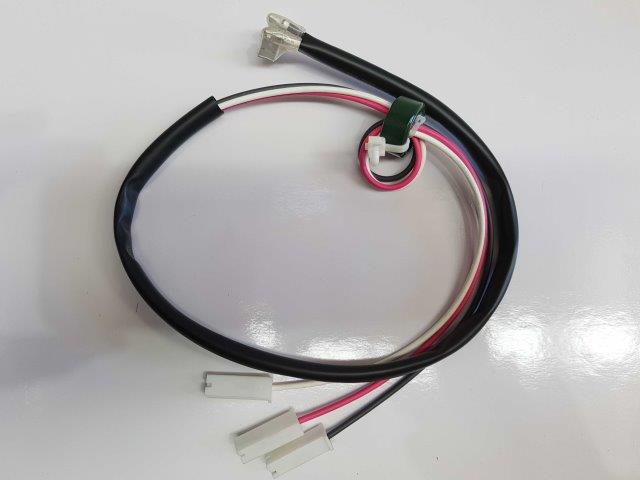

[41] In Stock

RCR504A048C

WIRING ASSY

Notes: FOR COMP., LENGTH 76CM Show Image

[42] In Stock

SSA554D173

CORE,FERRITE

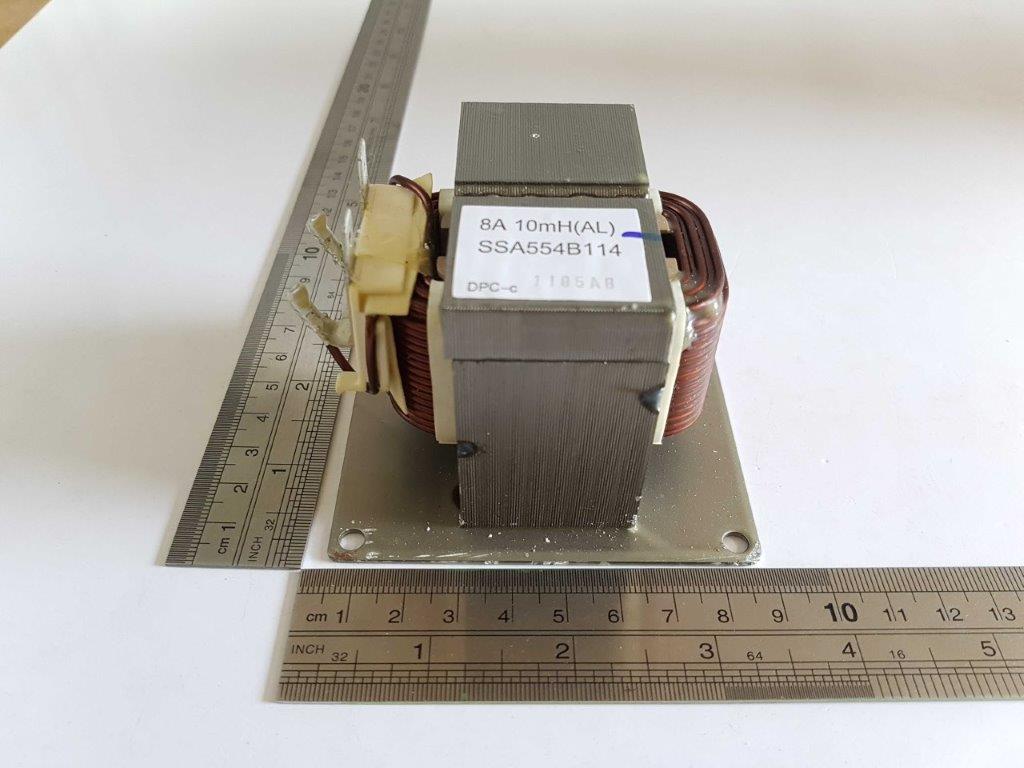

[43] In Stock

SSA554B114

REACTOR

Show Image

[44] In Stock

PSA941F001

SPRING LEAF

Notes: FOR TH2, 1pc ONLY Show Image

[45] In Stock

RCJ941F001

SPRING

Notes: FOR TH4, LENGTH 2.5CM Show Image

[46] Contact

RWC011F050CG

LABEL, MODEL NAME

Contact
