DXC21ZRA-W HEAT EXCH. AND CONTROL

Name: DXC21ZRA-W HEAT EXCH. AND CONTROL
SKU: DXC21ZRA-W HEAT EXCH. AND CONTROL
Availability: InStock

DXC21ZRA-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

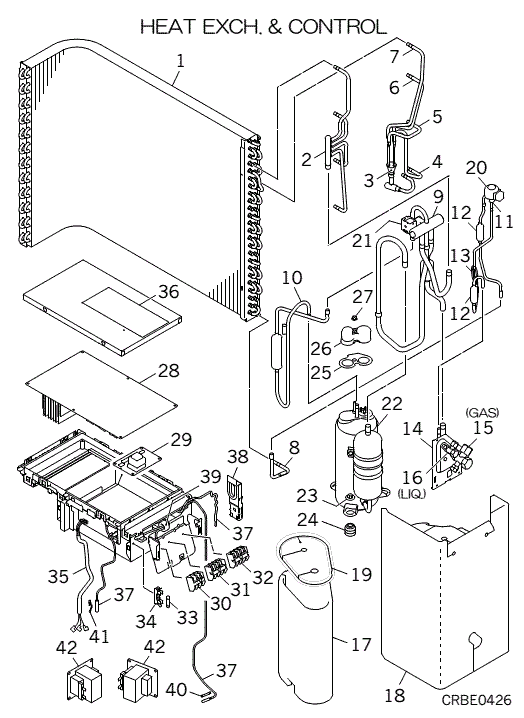

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock

RCT301A200

HEAT EXCH ASSY AIR

Notes: Condenser Heat Exchanger Coil assembly

[2] Contact

RCT315D200

HEADER ASSY,GAS

Contact

[3] Contact

SSA315A306B

DISTRIBUTOR

Contact

[3-7] Contact

RCT315A200A

DISTRIBUTOR ASSY

Contact

[4] Contact

RCT321A460

PIPE ASSY

Contact

Notes: f2.8xf4.0 L100, f2.8”f4.0 L100

[5] Contact

RCT321A461

PIPE ASSY

Contact

Notes: f2.8xf4.0 L100, f2.8”f4.0 L100

[6] Contact

RCT321A462

PIPE ASSY

Contact

Notes: f2.8xf4.0 L100, f2.8”f4.0 L100

[7] Contact

RCT321A463

PIPE ASSY

Contact

Notes: f2.8xf4.0 L100, f2.8”f4.0 L100

[8] Contact

RCT321A445

PIPE ASSY

Contact

[9] In Stock

SSA382C098

VALVE S(4WAY)

Notes: 20S, reversing valve, body only Show Image

[10] Contact

RCT304A503

PIPING ASSY(DISCH)

Contact

[11] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[11-13] In Stock

RCT304A201F

PIPING ASSY (EXPAN)

Notes: Includes Expansion Valve body, 2x Strainer & Capillary

[12] In Stock

SSA357A005A

STRAINER

Show Image

[13] In Stock

RCV315B202A

CAPILLARY

Notes: D2.8xD3.6 L300, 2.6X4.0 L300/ LENGTH 8.3CM Show Image

[14] In Stock

RCS116A004

BRACKET,VALVE

[15] In Stock

RCT381A002

SERVICE VALVE

Notes: GAS, VALVE,SERVICE (1/2") - GAS Show Image

[16] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[17] Contact

RCT154D300

INSULATION

Contact

[18] Contact

RCT154D201

INSULATION

Contact

[19] Contact

RCT154D302

INSULATION,COMP

Contact

[20] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[21] In Stock

RSA382F013BC

COIL ASSY,SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL / 4 WAY VALVE COIL - coil only

[22] In Stock

AHT201C134WL

COMPRESSOR

Notes: RMT5113SWE11, ***COMPRESSORS CANNOT BE RETURNED***

[23] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[24] In Stock

SSA941C346A

CUSHION,RUBBER

Notes: 1pc, FOR COMPRESSOR Show Image

[25] In Stock

RSA932C004

GASKET

Show Image

[26] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[27] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[28] In Stock

RCR505A100G

PWB ASSY

Notes: PWB1, PWB1 - OUTDOOR MAIN BOARD Show Image

[29] In Stock

RCT505A304

DRED

Notes: THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[30] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[31] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[32] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: T3 Show Image

[33] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[34] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[35] In Stock

RCT504A020B

WIRING ASSY

Notes: FOR COMP., Red. White, Black Show Image

[36] Contact

RCR011G201

LABEL,WIRING

Contact

[37] In Stock

SSA551A245

SENSOR ASSY

Notes: TH1,2,3 Show Image

[38] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[39] In Stock

SSA554D173

CORE,FERRITE

[40] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[41] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[42] In Stock

SSA554B114

REACTOR

Show Image

[43] Contact

RCR011F212A

LABEL,MODEL NAME

Contact
