DXC18ZSA-W PANEL AND FAN ASSY

Name: DXC18ZSA-W PANEL AND FAN ASSY
SKU: DXC18ZSA-W PANEL AND FAN ASSY
Availability: InStock

DXC18ZSA-W PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

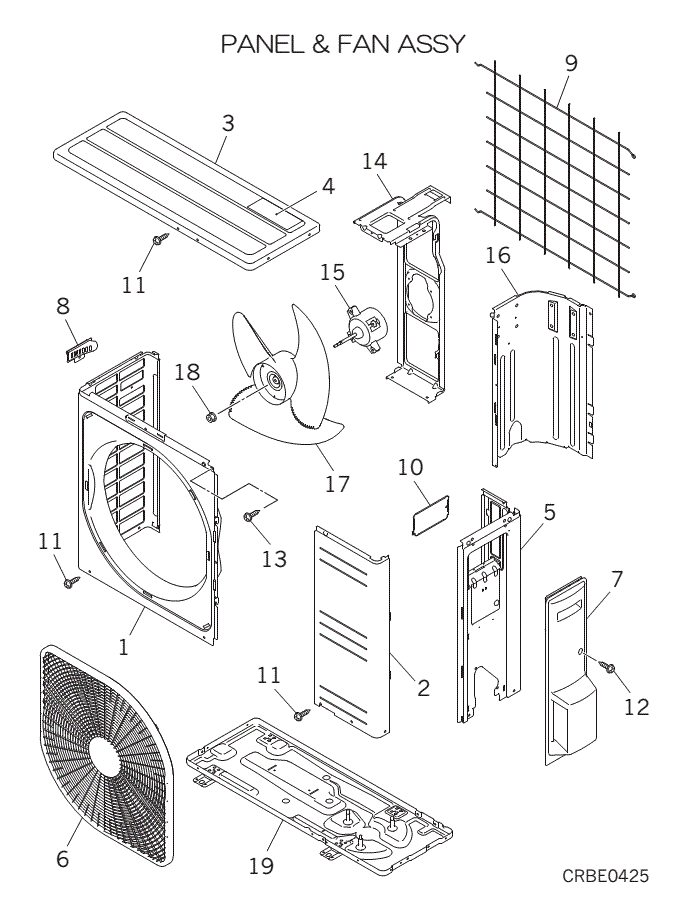

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCT122A003D

PANEL ASSY, FRONT

[2] In Stock

RCT122A006

PANEL,SERVICE

Notes: Logo/Sticker not included

[3] In Stock

RCT124A200

PANEL, TOP

[4] In Stock

RSA011H036B

LABEL,NOTICE

Notes: LENGTH 16.5CM Show Image

[5] In Stock

RCT125A002

PANEL ASSY,REAR

[6] In Stock

RCT435A002

GRILLE AIR OUTLET

Notes: FAN GRILLE / FAN GUARD

[7] In Stock

RCT132A002

SERVICE COVER ASSY

Notes: PLASTIC SERVICE PANEL - RIGHT SIDE

[8] In Stock

SSA944B036B

HANDLE

Notes: LENGTH 9.7CM Show Image

[9] Out of Stock

RCT131A001

GUARD,FIN

Substitute: RCT131A001B

[10] Contact

RCT142A200

COVER(TB)

Contact

[11] In Stock

SSA913A034F

SCREW,TAP

Notes: 4X8, 1pc ONLY, 4X8 Show Image

[12] In Stock

SSA913A034L

SCREW,TAP

Notes: 4X12, 1pc ONLY

[13] In Stock

SSA913A008F

SCREW,TAP

Notes: 4X10, 1pc ONLY, 4X10

[14] In Stock

RCT116A003

BRACKET

Notes: For Fan Motor

[15] In Stock

SSA512T061G

MOTOR,DC

Notes: CONDENSER FAN MOTOR

[16] In Stock

RCT141A201

PLATE ASSY,BAFFLE

[17] In Stock

SSA431B250

FAN

Notes: FAN BLADE

[18] In Stock

SSA914B007AC

NUT TH

Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image

[19] In Stock

RCT111A001AB

BASE ASSY

SKU: DXC18ZSA-W PANEL AND FAN ASSY Category: Uncategorised
