DXC18ZJ-S HEAT EXCH. AND CONTROL

Name: DXC18ZJ-S HEAT EXCH. AND CONTROL
SKU: DXC18ZJ-S HEAT EXCH. AND CONTROL
Availability: InStock

DXC18ZJ-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

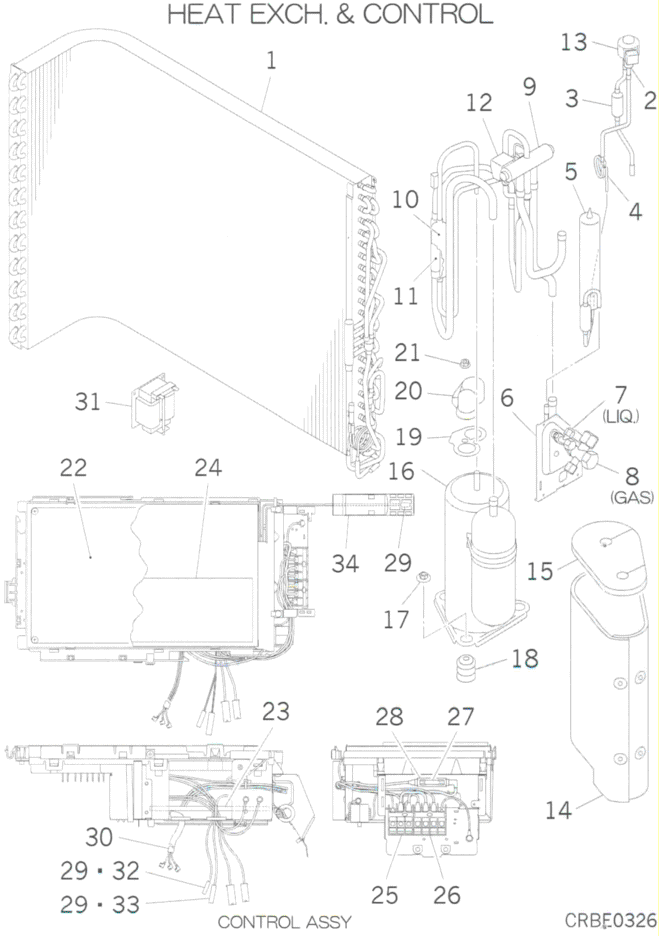

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock

RCT504A001

HARNESS ASSY

Notes: CNSUB-CNMAIN, CNMAIN TO CNSUB - 4 black wires with white plug Show Image

[1] In Stock

RCT301A005

HEAT EXCH ASSY(AIR

[2] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[2-5] In Stock

RCT304A016

PIPING ASSY(EXPAN)

[3] In Stock

SSA357A005A

STRAINER

Show Image

[4] Contact

P210V26X300

CAPILLARY

Contact

Notes: D2.6XD4.0 L300

[5] Contact

RCM325A300D

PIPE,SHELL

Contact

[6] In Stock

RCS116A004

BRACKET,VALVE

[7] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[8] In Stock

RCT381A002

SERVICE VALVE

Notes: GAS, VALVE,SERVICE (1/2") - GAS Show Image

[9] Contact

SSA382092

VALVE,S(4WAY)

Contact

Notes: 20S

[10] Contact

RCD325A700

PIPE,SHELL

Contact

[11] Contact

RCK325A501F

PIPE,SHELL

Contact

[12] In Stock

RSA382F013L

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR 20S‚ (REVERSING VALVE) Show Image

[13] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[14] Contact

RCT154D004

INSULATION,COMP

Contact

[15] Contact

RCV154D003

INSULATION,COMP

Contact

[16] In Stock

RSA201A036

COMPRESSOR ASSY

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[17] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[18] In Stock

SSA941C354

CUSHION,RUBBER

Show Image

[19] In Stock

RSA932C004

GASKET

Show Image

[20] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[21] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

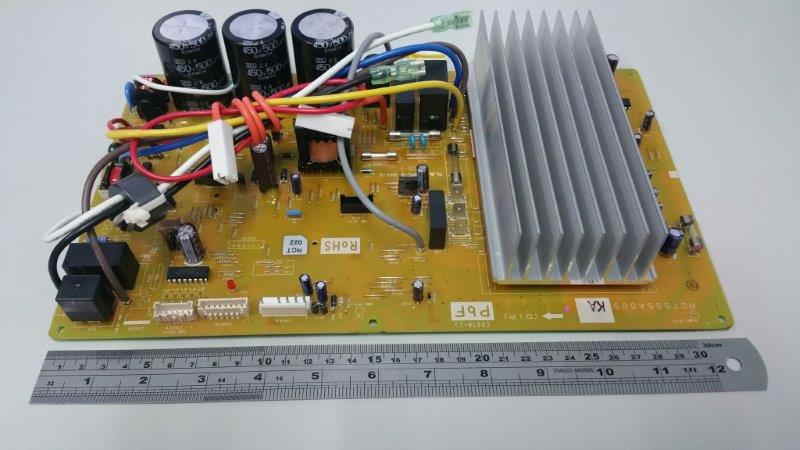

[22] In Stock

RCT505A005KA

PWB ASSY (MAIN)

Notes: MAIN PCB - controls compressor and fan motor Show Image

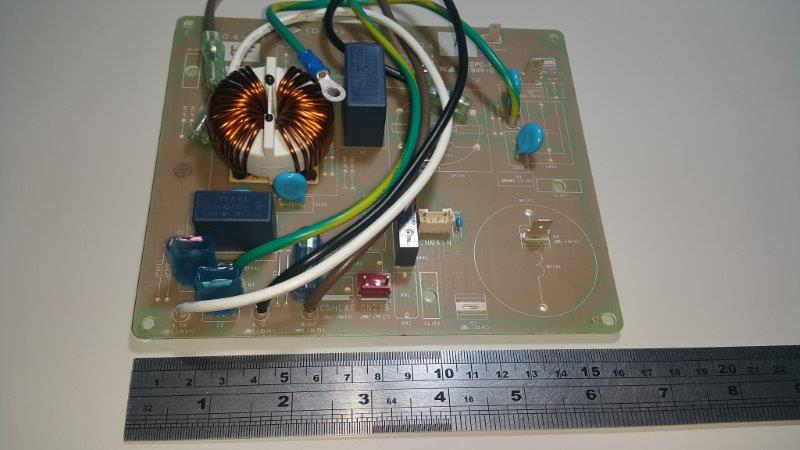

[23] In Stock

RCT505A004A

PWB ASSY(SUB)

Show Image

[24] Contact

RCT011G002AB

LABEL,WIRING

Contact

[25] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[26] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[27] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[28] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[29] In Stock

SSA551A216L

SENSOR ASSY

Notes: OUTDOOR SENSOR ASSEMBLY - 3 SENSORS ON 1 PLUG Show Image

[30] In Stock

RCV504A001

WIRING ASSY

Notes: FOR COMP., WIRING HARNESS FOR COMPRESSOR Show Image

[31] In Stock

SSA554B113

REACTOR

Show Image

[32] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[33] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[34] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[35] Contact

RWC011F016AR

LABEL,MODEL NAME

Contact
