DXC06ZM-S PANEL AND FAN ASSY

Name: DXC06ZM-S PANEL AND FAN ASSY
SKU: DXC06ZM-S PANEL AND FAN ASSY
Availability: InStock

DXC06ZM-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

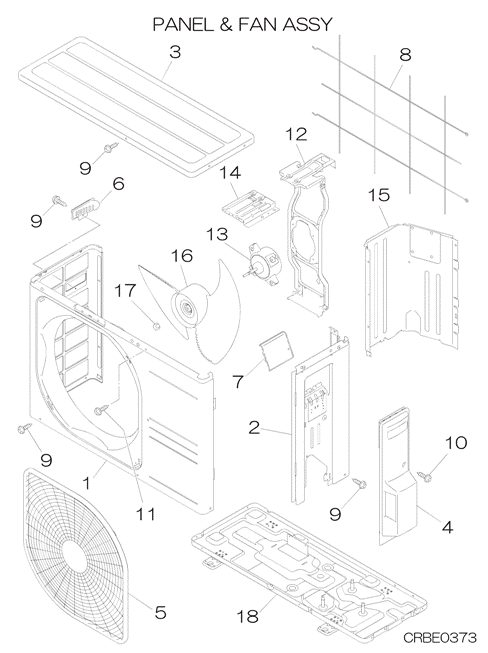

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCV122A001

FRONT PANEL

[2] In Stock

RCV123A001

PANEL,SIDE(R)

[3] In Stock

RCV124A001

PANEL,TOP

[4] In Stock

RCV132A003

COVER ASSY,SERVICE

Notes: Right side plastic service cover

[5] In Stock

RCV435A002

GRILLE, AIR OUTLET

Notes: AIR OUTLET GRILLE / FAN GUARD

[6] In Stock

SSA944B036B

HANDLE

Notes: LENGTH 9.7CM Show Image

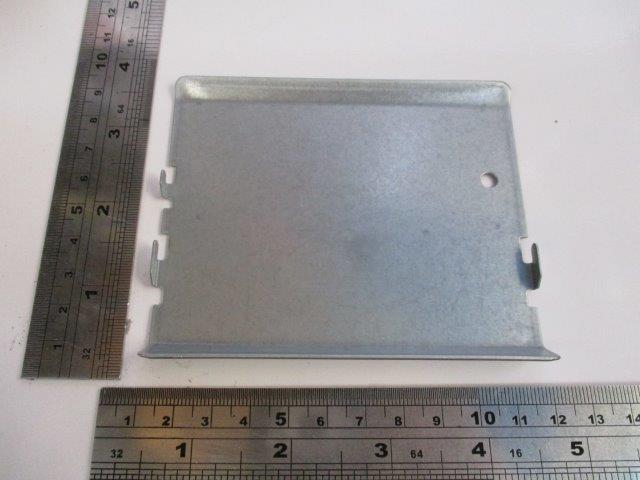

[7] In Stock

RCV142A001

COVER(TB)

Show Image

[8] In Stock

RCV131A001

GUARD,FIN

[9] In Stock

SSA913A034F

SCREW,TAP

Notes: 4X8, 1pc ONLY, 4X8 Show Image

[10] In Stock

SSA913A034L

SCREW,TAP

Notes: 4X12, 1pc ONLY

[11] In Stock

SSA913A008F

SCREW,TAP

Notes: 4X10, 1pc ONLY, 4X10

[12] In Stock

RCV116A005

BRACKET ASSY

Notes: FAN MOTOR MOUNTING BRACKET

[13] In Stock

SSA512T094

MOTOR,DC

Notes: CONDENSER FAN MOTOR. HAS WIRING HARNESS ATTACHED.

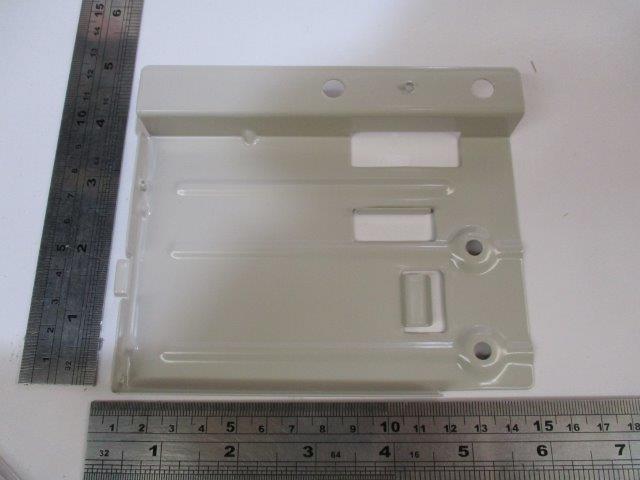

[14] In Stock

RCV116A003

BRACKET,MOTOR(U)

Show Image

[15] In Stock

RCV141A001A

PLATE,BAFFLE

[16] In Stock

SSA431B253

PROPELLER

Notes: OUTDOOR FAN BLADE

[17] In Stock

SSA914B007AC

NUT TH

Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image

[18] In Stock

RCV111A001

BASE ASSY
