DXC05ZTLA-W PANEL AND FAN ASSY

Name: DXC05ZTLA-W PANEL AND FAN ASSY
SKU: DXC05ZTLA-W PANEL AND FAN ASSY
Availability: InStock

DXC05ZTLA-W PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

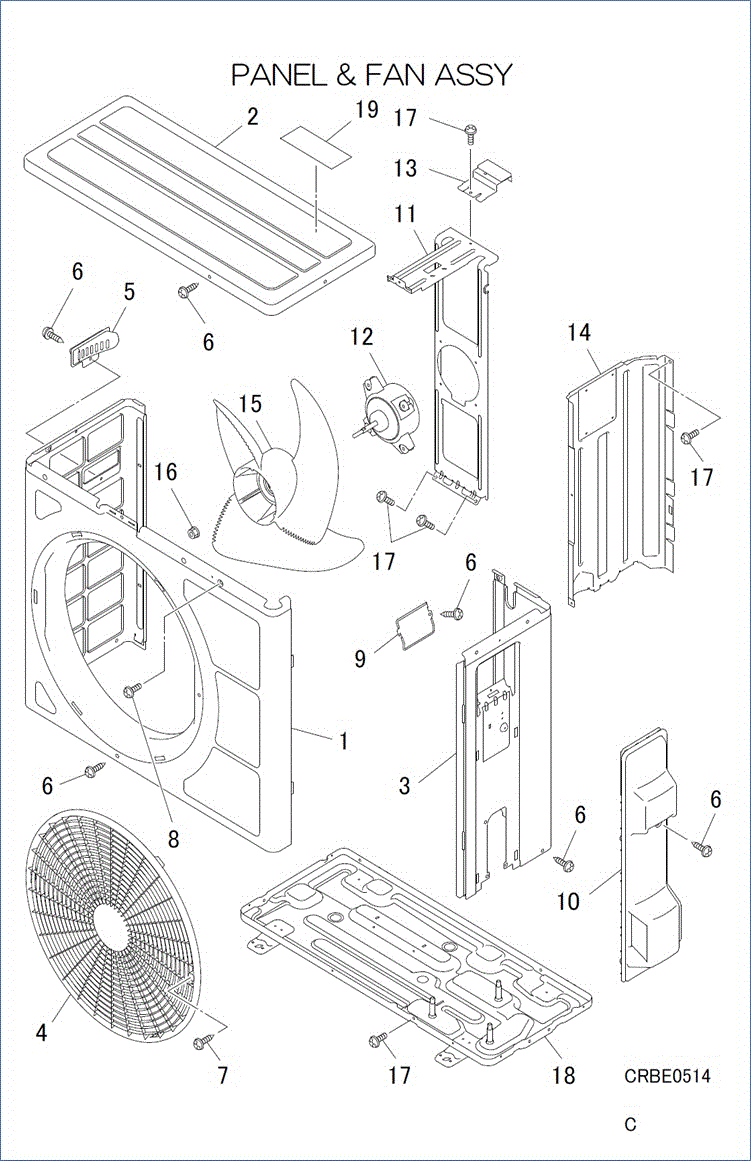

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCW122A002

PANEL, FRONT

[2] In Stock

RCW124A004

PANEL ASSY, TOP

[3] In Stock

RCW123A003

PANEL ASSY SIDE (R)

[4] In Stock

RCW435A002

GRILLE AIR OUTLET

Notes: FAN GUARD/FAN GRILLE

[5] In Stock

SSA944B036B

HANDLE

Notes: LENGTH 9.7CM Show Image

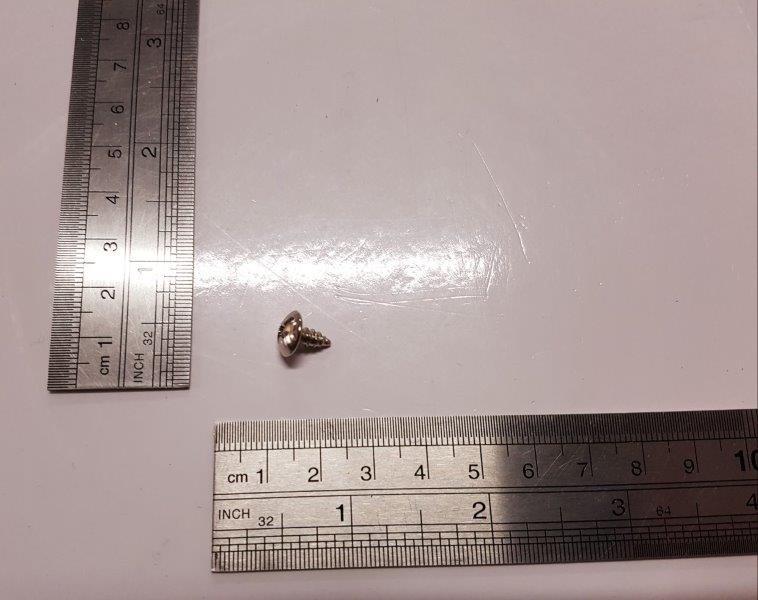

[6] In Stock

SSA913A034K

SCREW,TAP

Notes: 4x8 Show Image

[7] In Stock

SSA913A034L

SCREW,TAP

Notes: 4x12, 1pc ONLY

[8] In Stock

SSA913A008F

SCREW,TAP

Notes: 4x10, 1pc ONLY, 4X10

[9] In Stock

RCW142A007

COVER(TB)

[10] In Stock

RCW132A002

COVER ASSY,SERVICE

[11] In Stock

RCW116A401

BRACKET ASSY, MOTOR

[12] In Stock

SSA512T169

MOTOR, DC

[13] Contact

RCW116A007

BRACKET ASSY

Contact

[14] Contact

RCW141A001A

PLATE,BAFFLE

Contact

[15] In Stock

SSA431B258

PROPELLER

[16] In Stock

SSA914B007AC

NUT TH

Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image

[17] In Stock

W011D04X008

TAP SCREW

Notes: 4x8, 1pc ONLY Show Image

[18] In Stock

RCW111A003C

BASE ASSY

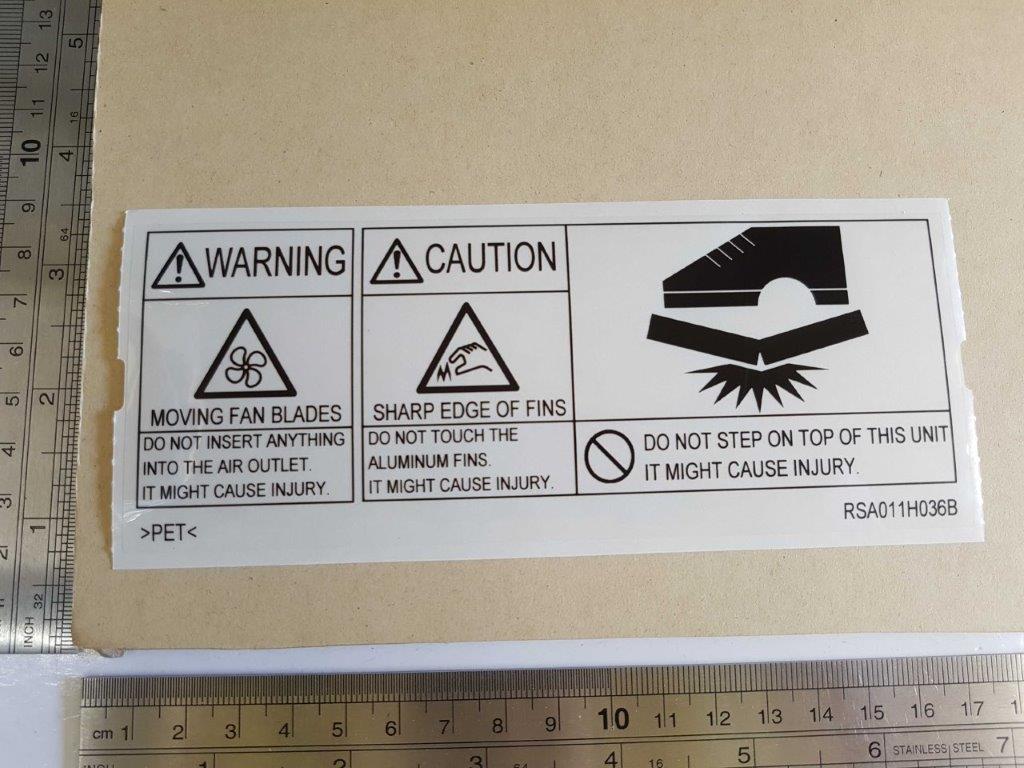

[19] In Stock

RSA011H036B

LABEL,NOTICE

Notes: LENGTH 16.5CM Show Image

SKU: DXC05ZTLA-W PANEL AND FAN ASSY Category: Uncategorised
