DXC05ZTLA-W HEAT EXCH. AND CONTROL

Name: DXC05ZTLA-W HEAT EXCH. AND CONTROL
SKU: DXC05ZTLA-W HEAT EXCH. AND CONTROL
Availability: InStock

DXC05ZTLA-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

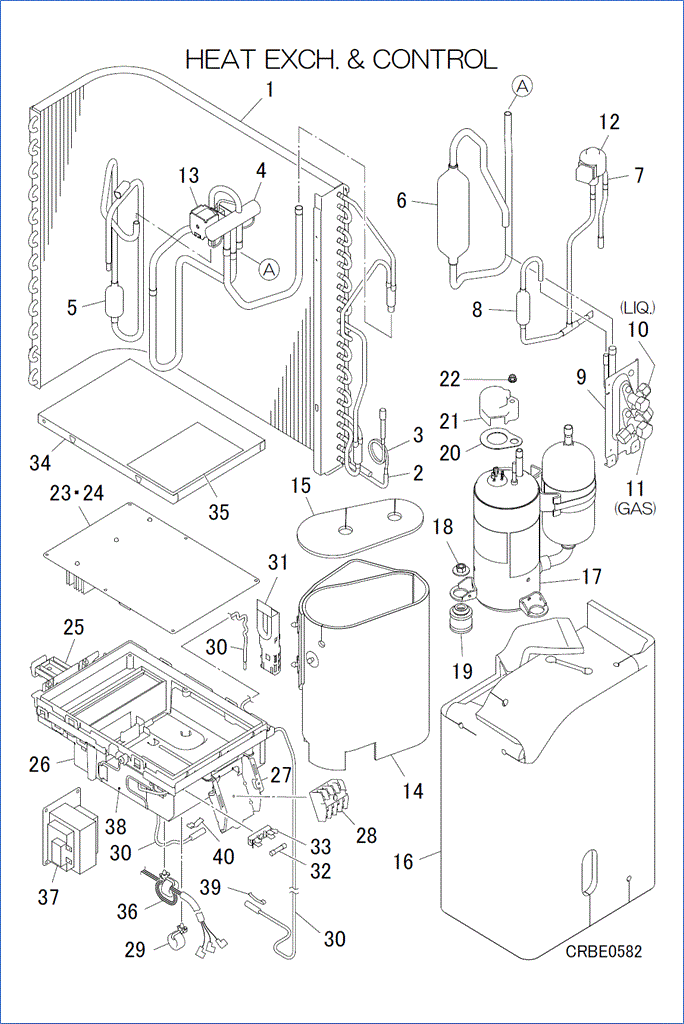

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] In Stock

RCW301A200

HEAT EXCH ASSY (AIR)

[2-3] Contact

RCW321A008

PIPE ASSY

Contact

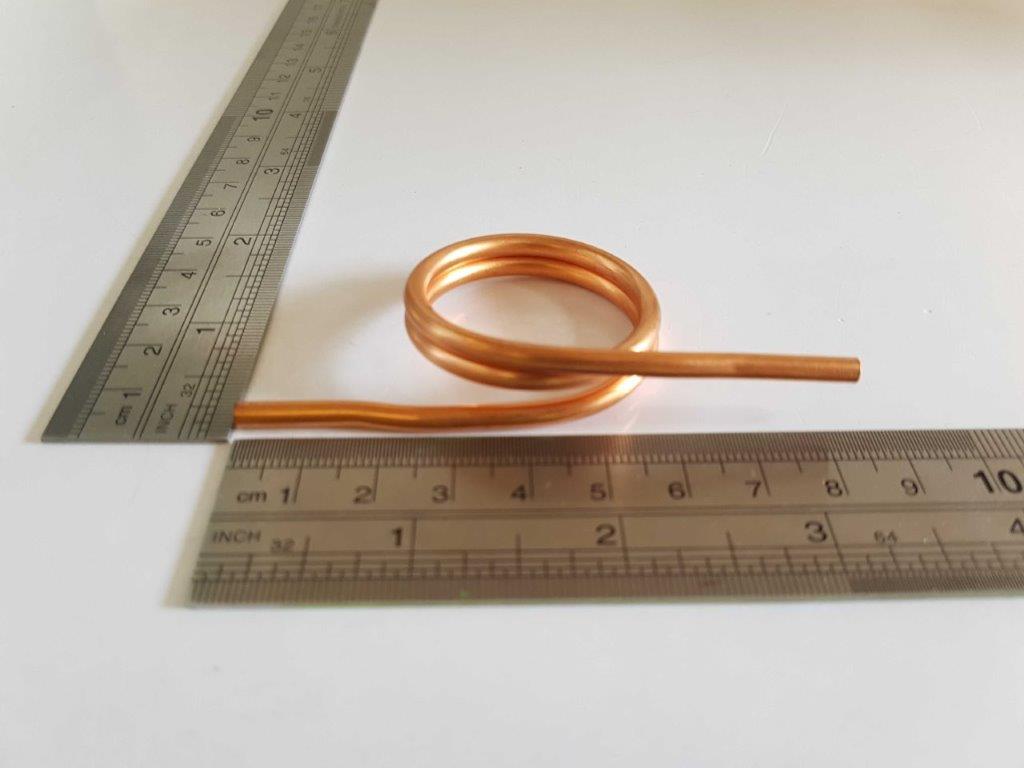

[3] In Stock

RCV315B202A

CAPILLARY

Notes: D2.6xD3.6 L300, 2.6X4.0 L300/ LENGTH 8.3CM Show Image

[4] Contact

SSA382C107

VALVE, S(4WAY)

Contact

Notes: 20S

[5] Contact

RCW321A400

PIPE ASSY (DISCH)

Contact

[6] Contact

RCW321A406

PIPE ASSY (E)

Contact

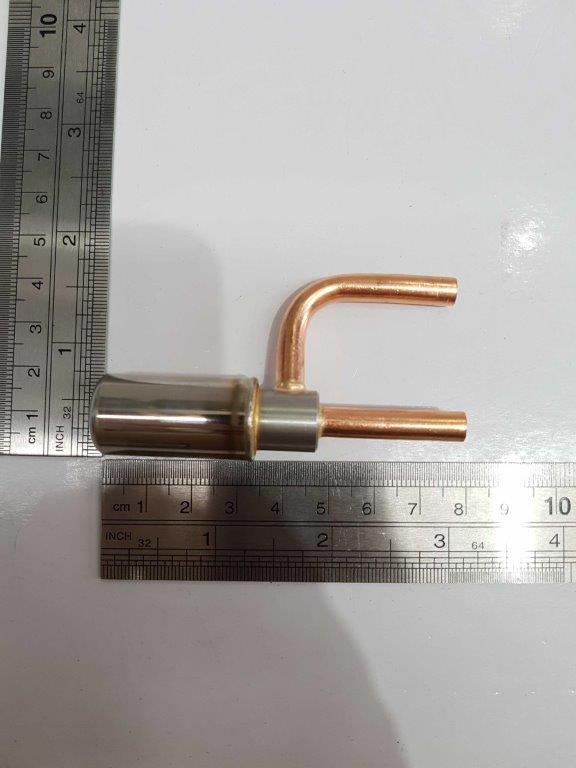

[7] In Stock

SSA387F078

VALVE, BODY(EXP)

Notes: EEV, Expansion Valve Body - LENGTH 7.7CM Show Image

[7-8] Contact

RCW304A403

PIPING ASSY (EXPAN)

Contact

[8] In Stock

SSA357A005A

STRAINER

Show Image

[9] Contact

RCW116A002

BRACKET(VALVE)

Contact

[10] In Stock

RCW381A001

VALVE SERVICE 1/4"

Notes: LIQ. Show Image

[11] In Stock

RCW381A002

VALVE SERVICE 3/8"

Notes: GAS

[12] In Stock

SSA382F210L

COIL,SOLENOID

Notes: FOR EEV, SOLENOID COIL FOR EEV (ELECTRONIC EXPANSION VALVE)

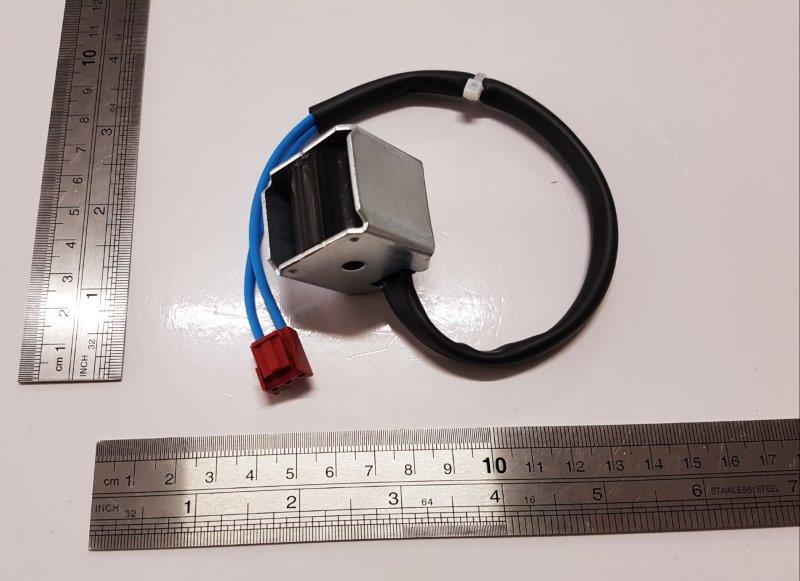

[13] In Stock

RSA382F022B

COIL ASSY, SOLENOID

Notes: FOR 20S Show Image

[14] Contact

RCW154D400

INSULATION, COMP

Contact

[15] Contact

RCW154D401

INSULATION, COMP

Contact

[16] Contact

RCW154D003

INSULATION

Contact

[17] In Stock

AHT201G774W

COMPRESSOR ASSY

Notes: RMD5077SWE1, ***COMPRESSORS CANNOT BE RETURNED***

[18] Contact

SSA914C033A

NUT, FLANGE

Contact

[19] In Stock

SSA941C361

CUSHION RUBBER

[20] Contact

SSA932C009B

GASKET, COVER

Contact

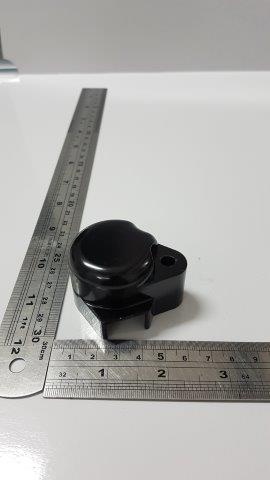

[21] In Stock

SSA947K026

COVER,TERMINAL

Show Image

[22] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[23-24] In Stock

RCW505A011GD

PWB ASSY

Notes: Outdoor PCB

[24] In Stock

SSA564A149ZA

FUSE(CURRENT)

Notes: F31A

[25] In Stock

RCW142A006

BOX, CONTROL

[26] In Stock

RCW142A004

BOX, CONTROL (A)

[27] In Stock

RCW116A005

BRACKET (TB)

[28] In Stock

SSA561B723

BLOCK,TERMINAL

Notes: TB1 Show Image

[29] In Stock

SSA554D173

CORE,FERRITE

[30] In Stock

SSA551A239B

SENSOR ASSY

Notes: TH2,3,4, LENGTH 103.5CM Show Image

[31] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[32] In Stock

SSA564A136

FUSE

Notes: F715A

[33] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[34-35] In Stock

RCW142A008H

LID ASSY, CONTROL

[35] Contact

RCV011G002AD

LABEL, WIRING

Contact

[36] Contact

RCW504A003

WIRING ASSY

Contact

Notes: FOR COMP.

[37] In Stock

SSA554B099A

REACTOR

Notes: AKA TRANSFORMER Show Image

[38] Contact

RCW142A002

LID

Contact

[39] In Stock

RKF941F002

SPRING

Notes: FOR TH2, LENGTH 2.8CM Show Image

[40] In Stock

RCJ941F001

SPRING

Notes: FOR TH4, LENGTH 2.5CM Show Image

[41] Contact

RWC011F050CA

LABEL, MODEL NAME

Contact

SKU: DXC05ZTLA-W HEAT EXCH. AND CONTROL Category: Uncategorised
